SCM-10

Description

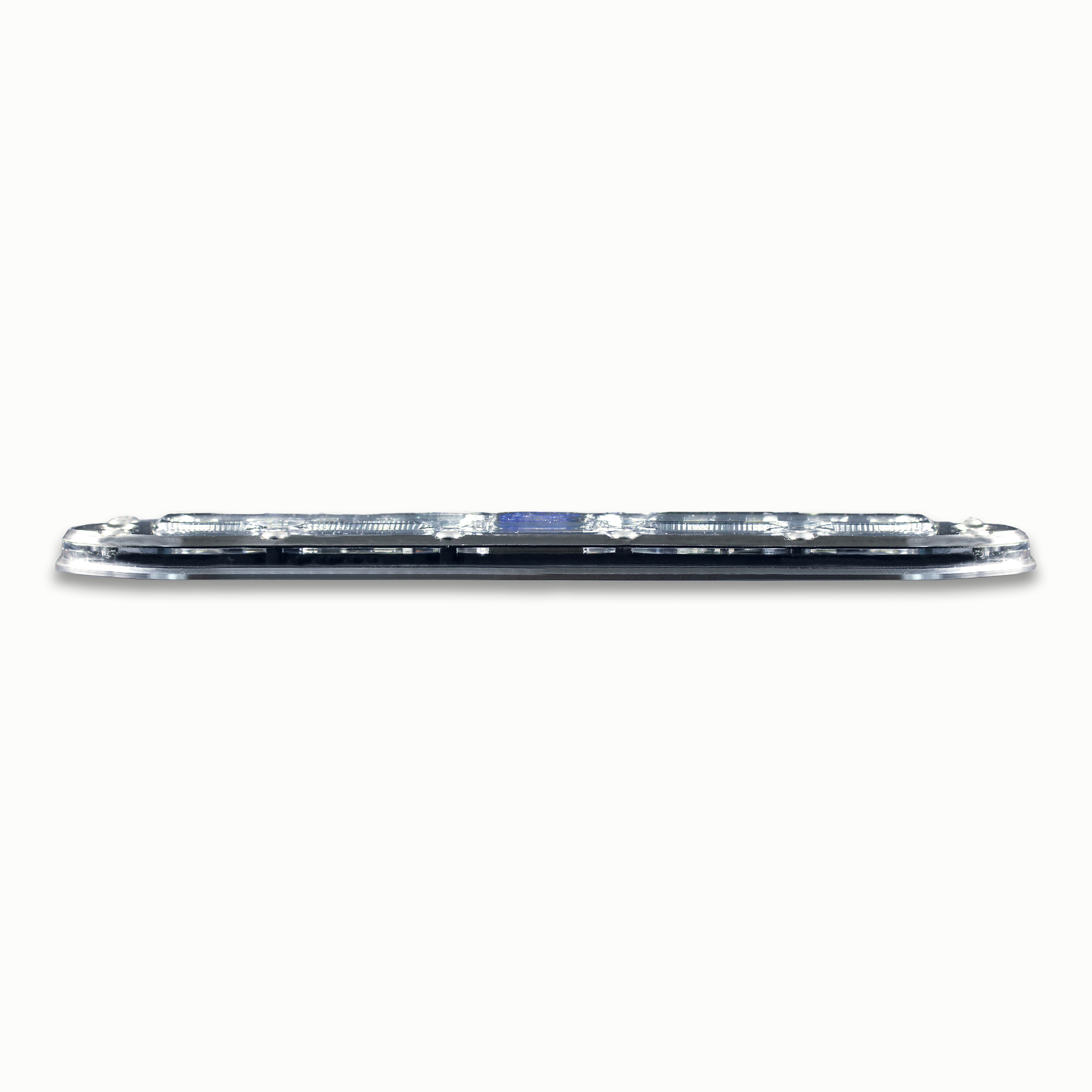

The 10 LED underwater marine light SCM-10 provides your vessel 42 watts of intense LED lighting. The SCM-10’s low profile design allows for many mounting locations. 5 different single colour options to choose from. The unique stainless steel housing compliments the look of any trailer or lift kept boat.

KEY FEATURES

• Proprietary clear-gel-filled design, injected through entire unit – eliminates condensation and/or water intrusion under stress
• Tough, polycarbonate lens
• Passivated stainless steel 316 material provides a durable corrosion resistant housing
• Transient surge and reverse polarity protection – dramatically prolongs unit life
• Thermal throttling technology – enables safe operation even out of water
• 3-Year Warranty

TECHNICAL INFORMATION

• Up to 4,000 lumens
• 120° beam angle
• 10 single colour LEDs
• 42 watts power draw
• 3.5 Amps operating current draw @ 12 volts
• 10-30 volts input
• 254 mm x 61mm x 13mm
• IP68 fully submersible waterproof design

DATA SHEET LINK

• SCM-10-Series_Underwater-LED-Light-Datasheet_HR-1
• SCM-CC-and-SCM-10_install-diagrams-Rev-10-13-1
• SCM-10-CC-Color-Caster-Underwater-LED-1
• SCM-Series-4_6_10_Installation-Instructions_HR
• SCM-CC-and-SCM-10_install-diagrams-Rev-10-13-1

COLOURS AVAILABLE / PART NUMBER

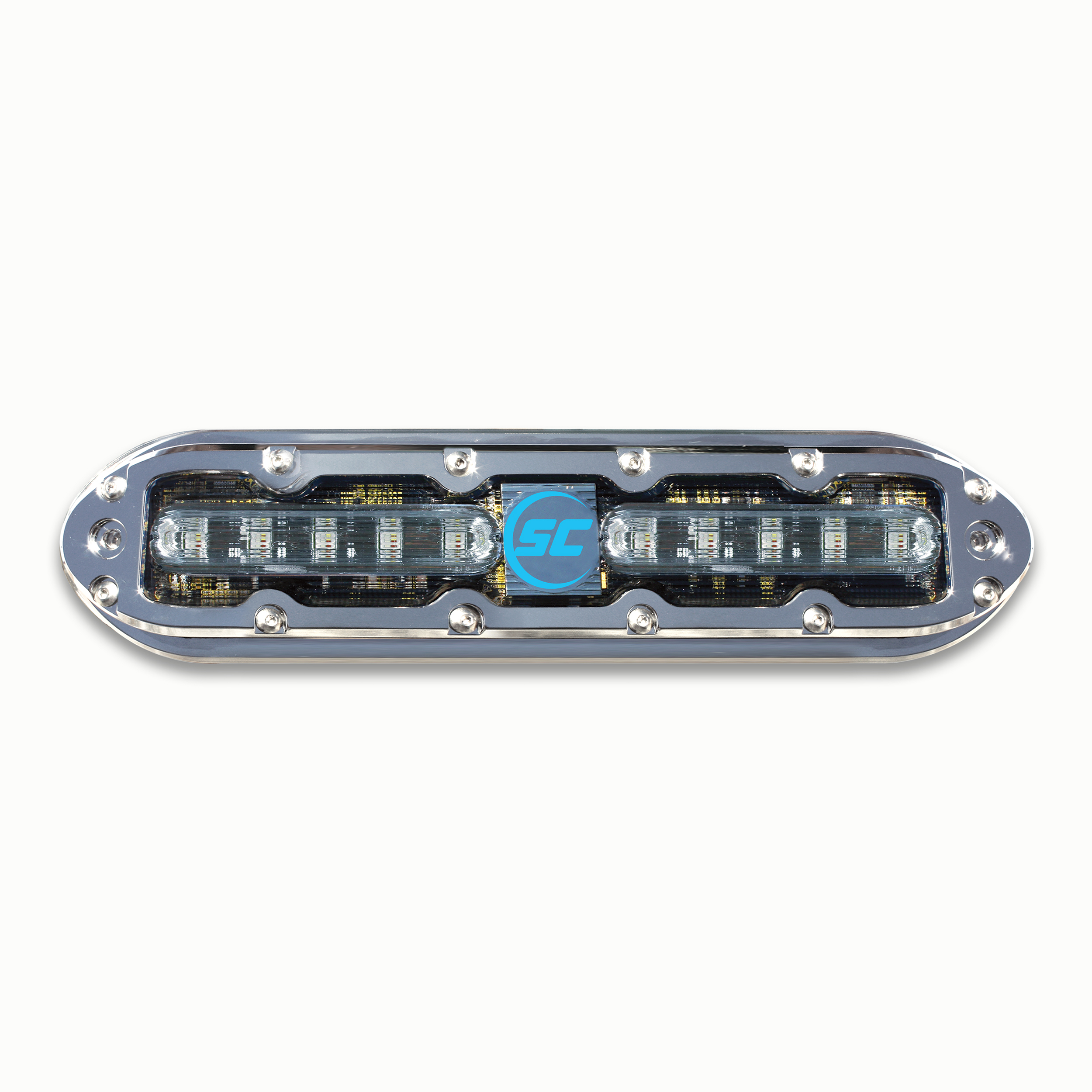

Bimini Blue

• SCM-10-BB-20

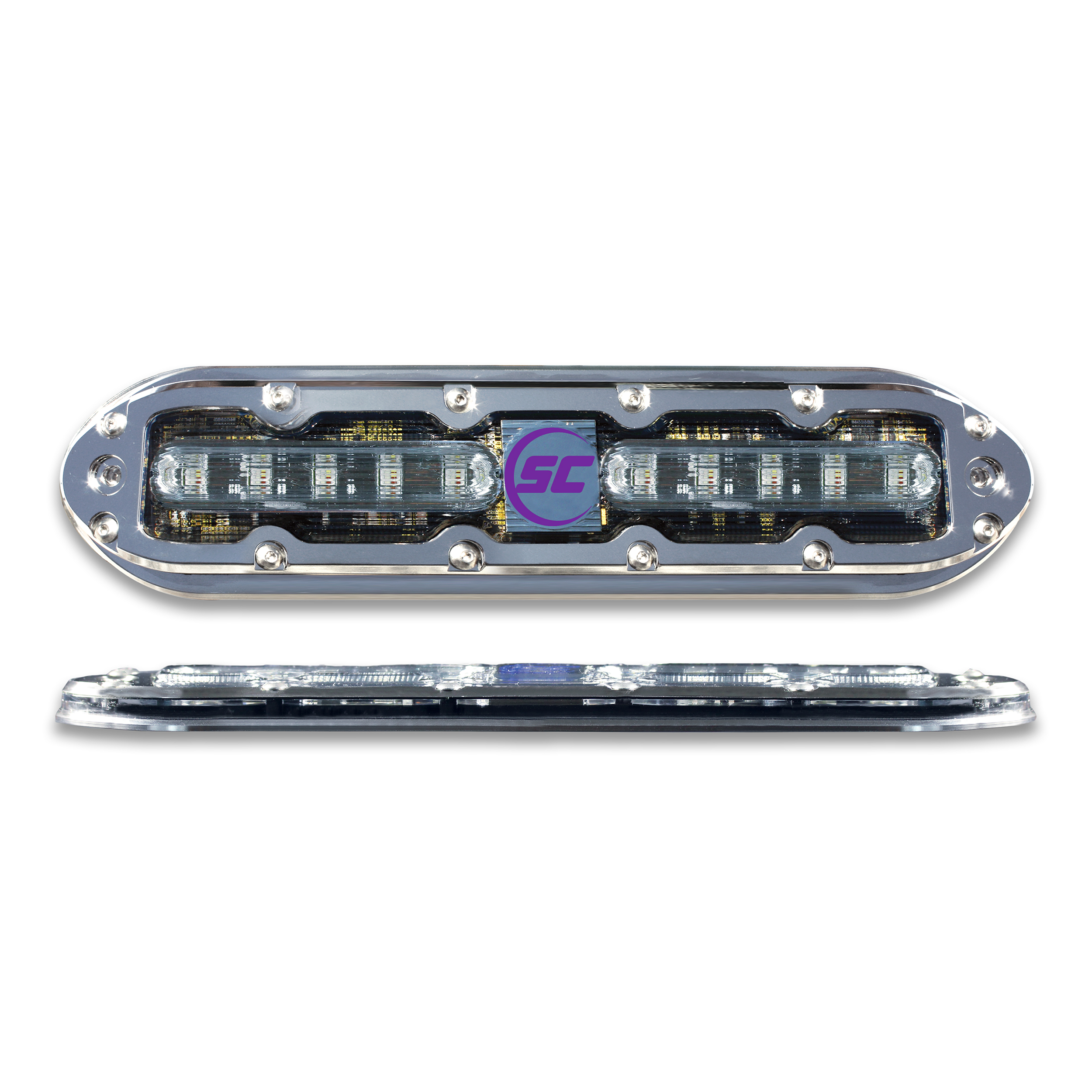

Ultra Blue

• SCM-10-UB-20

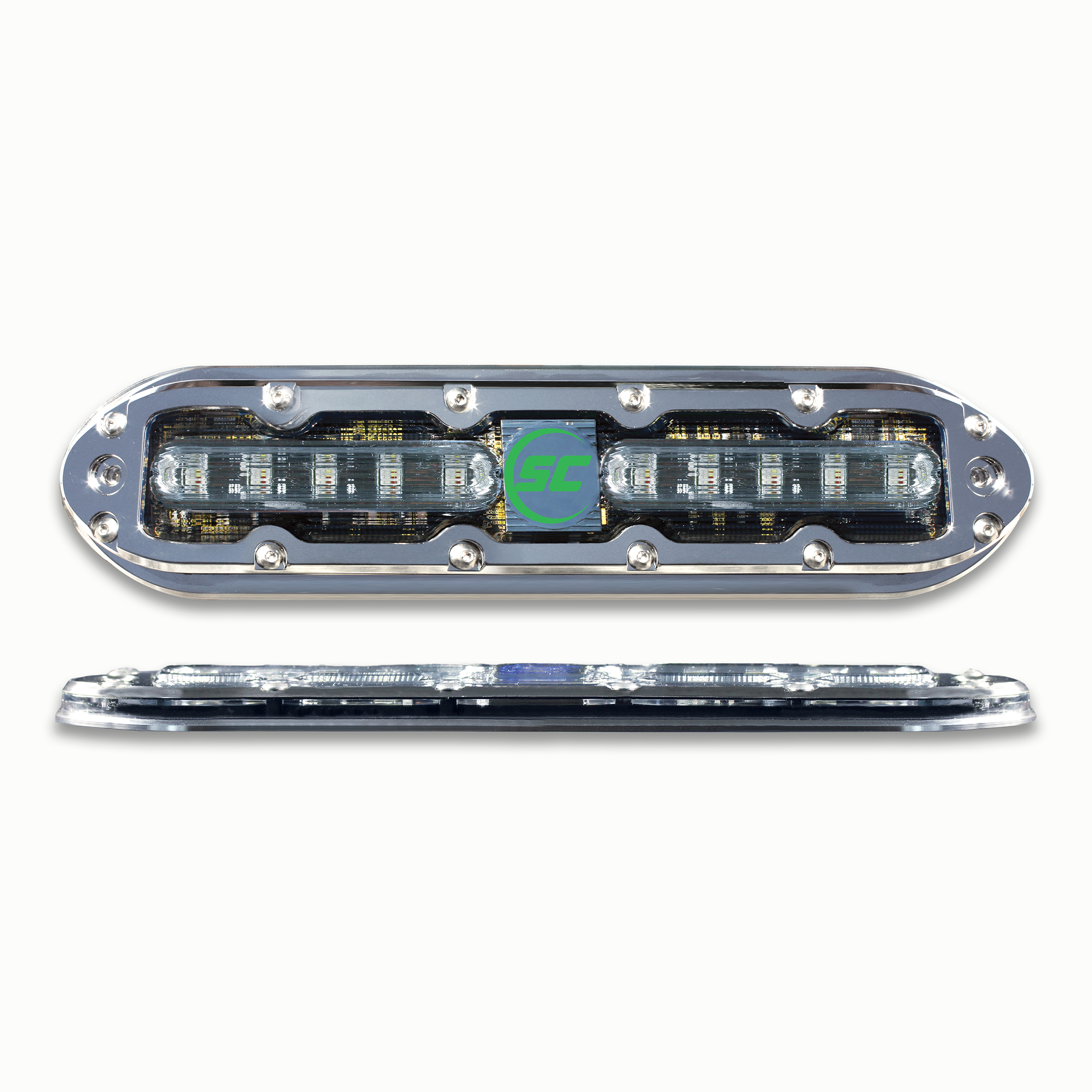

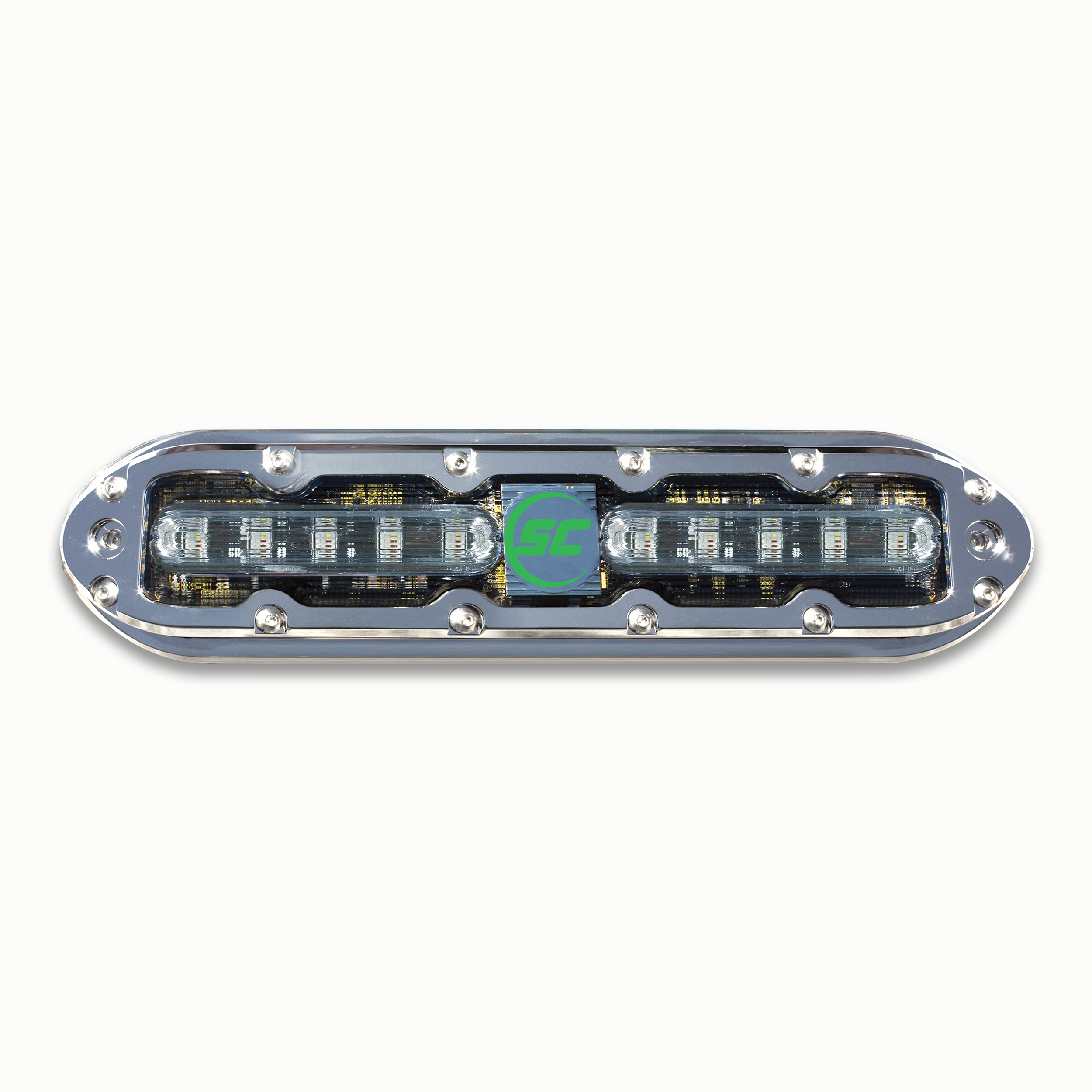

Aqua Green

• SCM-10-AG-20

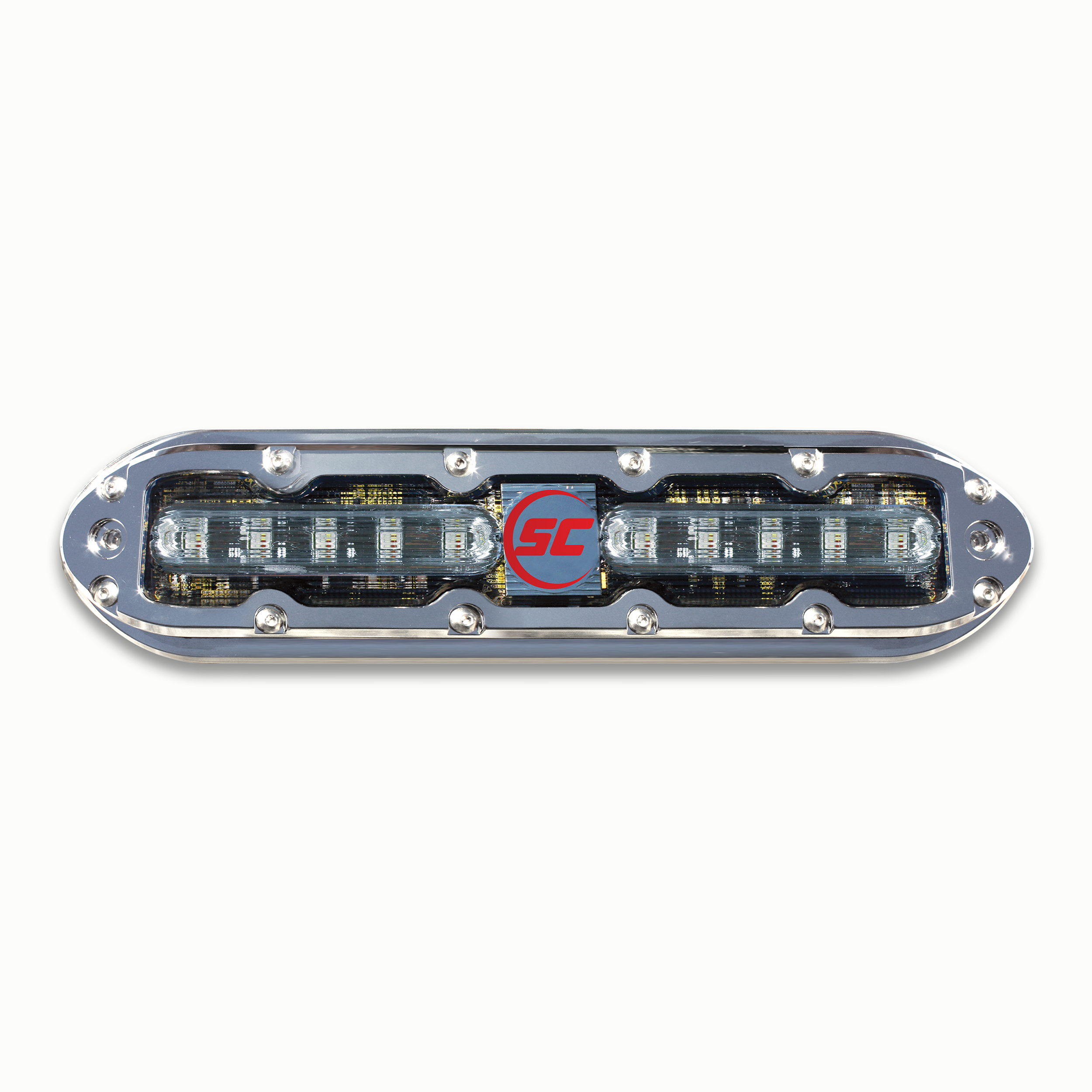

Cool Red

• SCM-10-CR-20

Great White

• SCM-10-GW-20
