SCM-4

Description

The SCM-4 is a 4 LED underwater marine light and provides your vessel with 17 watts of intense LED lighting. Choose from 5 different single colour options. The SCM-4’s low profile design allows for many mounting locations. The unique stainless steel housing compliments the look of any trailer or lift kept boat.

KEY FEATURES

• Proprietary clear-gel-filled design, injected through entire unit – eliminates condensation and/or water intrusion under stress
• Tough, polycarbonate lens
• Passivated stainless steel 316 material provides a durable corrosion resistant housing
• Transient surge and reverse polarity protection – dramatically prolongs unit life
• Thermal throttling technology – enables safe operation even out of water
• 3-Year Warranty

TECHNICAL INFORMATION

• Up to 1,600 lumens
• 120° beam angle
• 4 single colour LEDs
• 17 watts power draw
• 1.4 amps operating current draw @ 12 volts
• 10-30 volts input
• 148 mm x 61mm x 13mm
• IP68 fully submersible waterproof design

DATA SHEET LINK

• SCM-4-Series-Underwater-LED-Light_Datasheet_HR-1
• SCM-4_install-diagram-Rev-3-16-1-1
• SCM-Series-4_6_10_Installation-Instructions_HR

COLOURS AVAILABLE / PART NUMBER

Bimini Blue

• SCM-4-BB-20

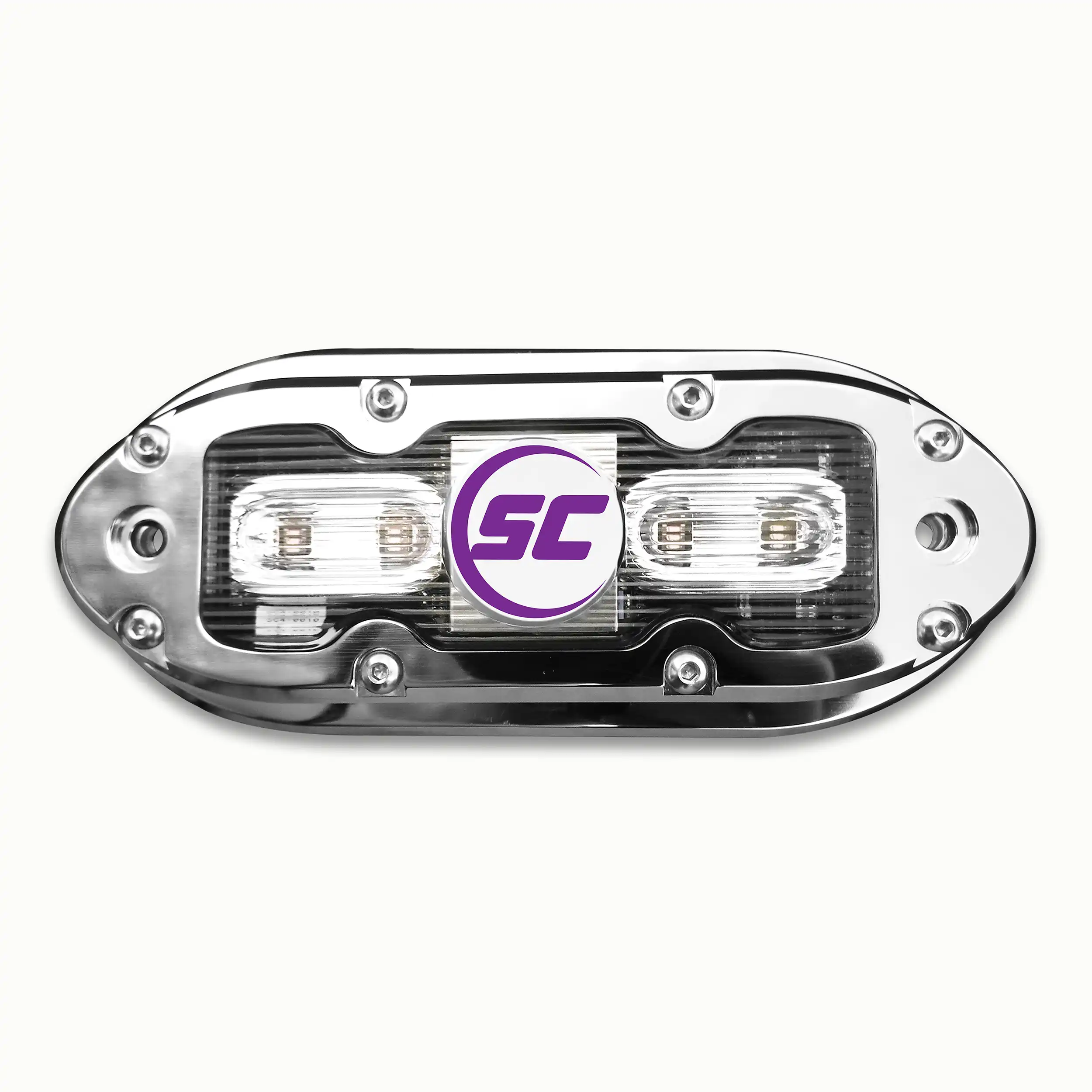

Ultra Blue

• SCM-4-UB-20

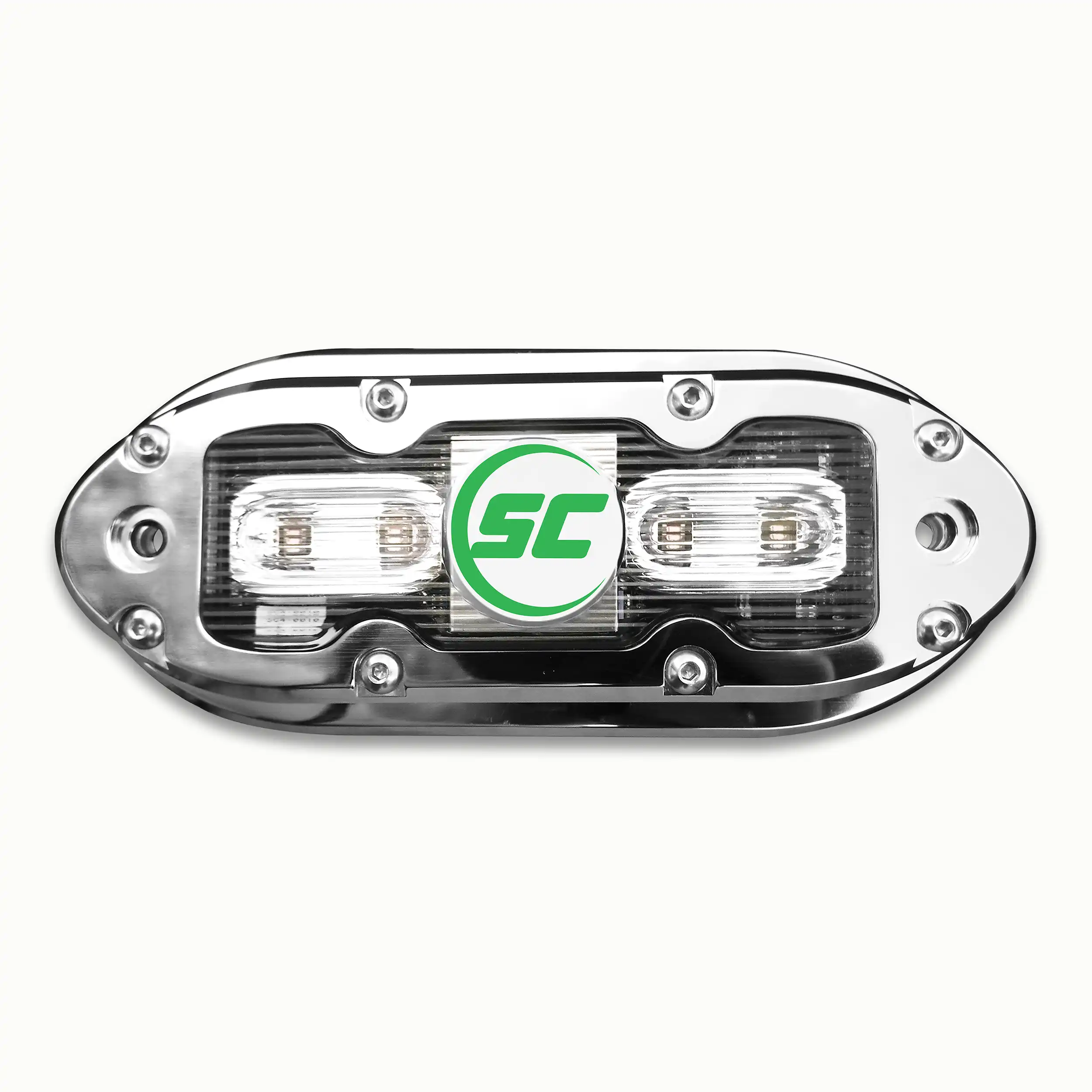

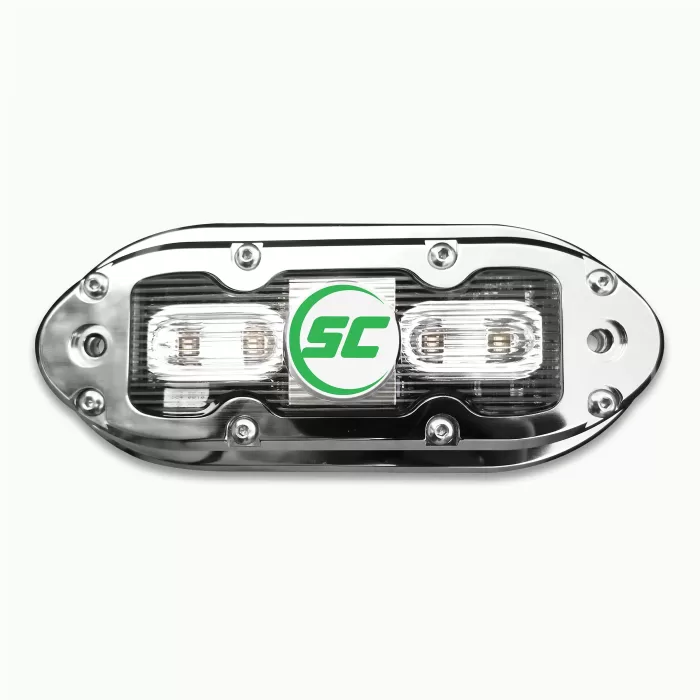

Aqua Green

• SCM-4-AG-20

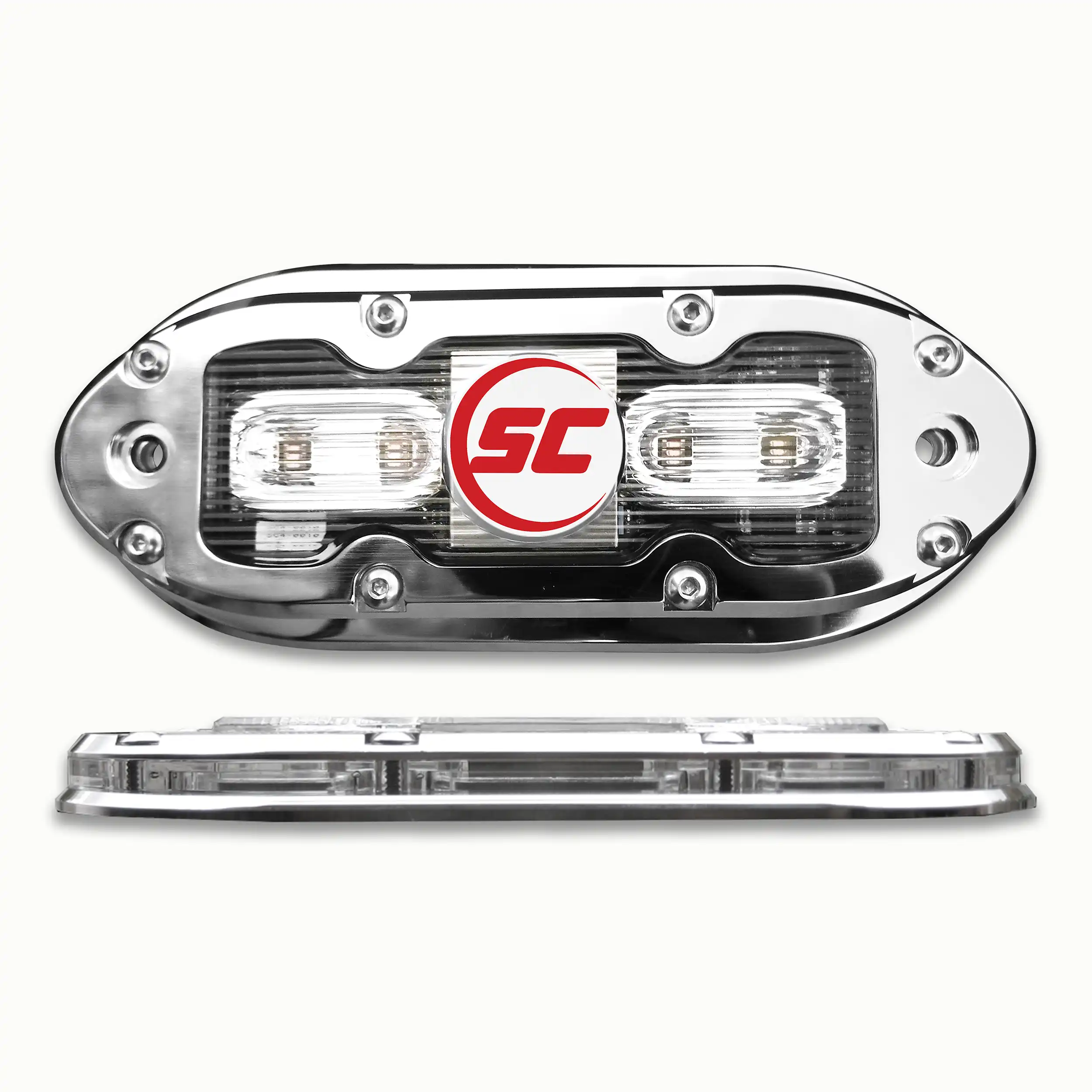

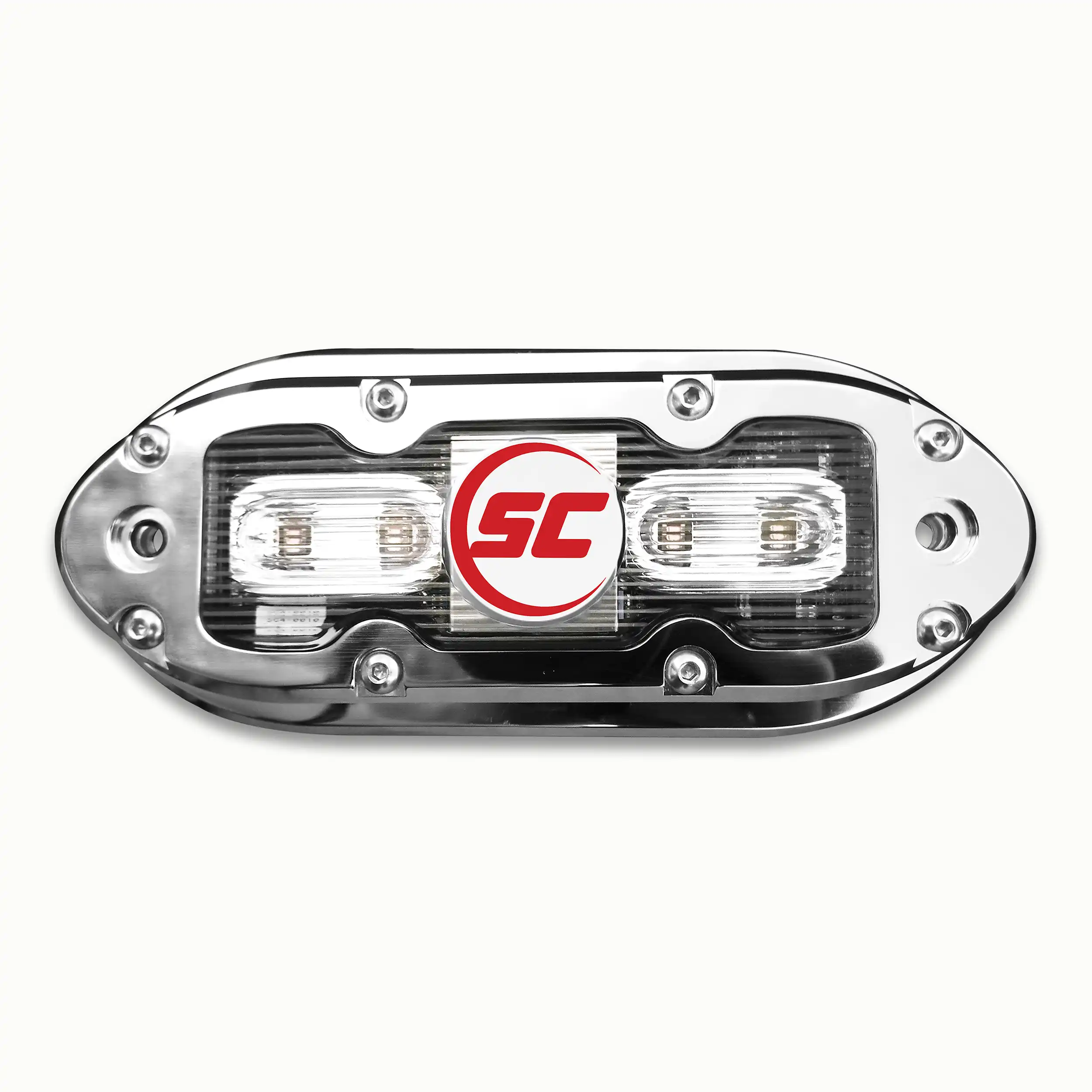

Cool Red

• SCM-4-CR-20

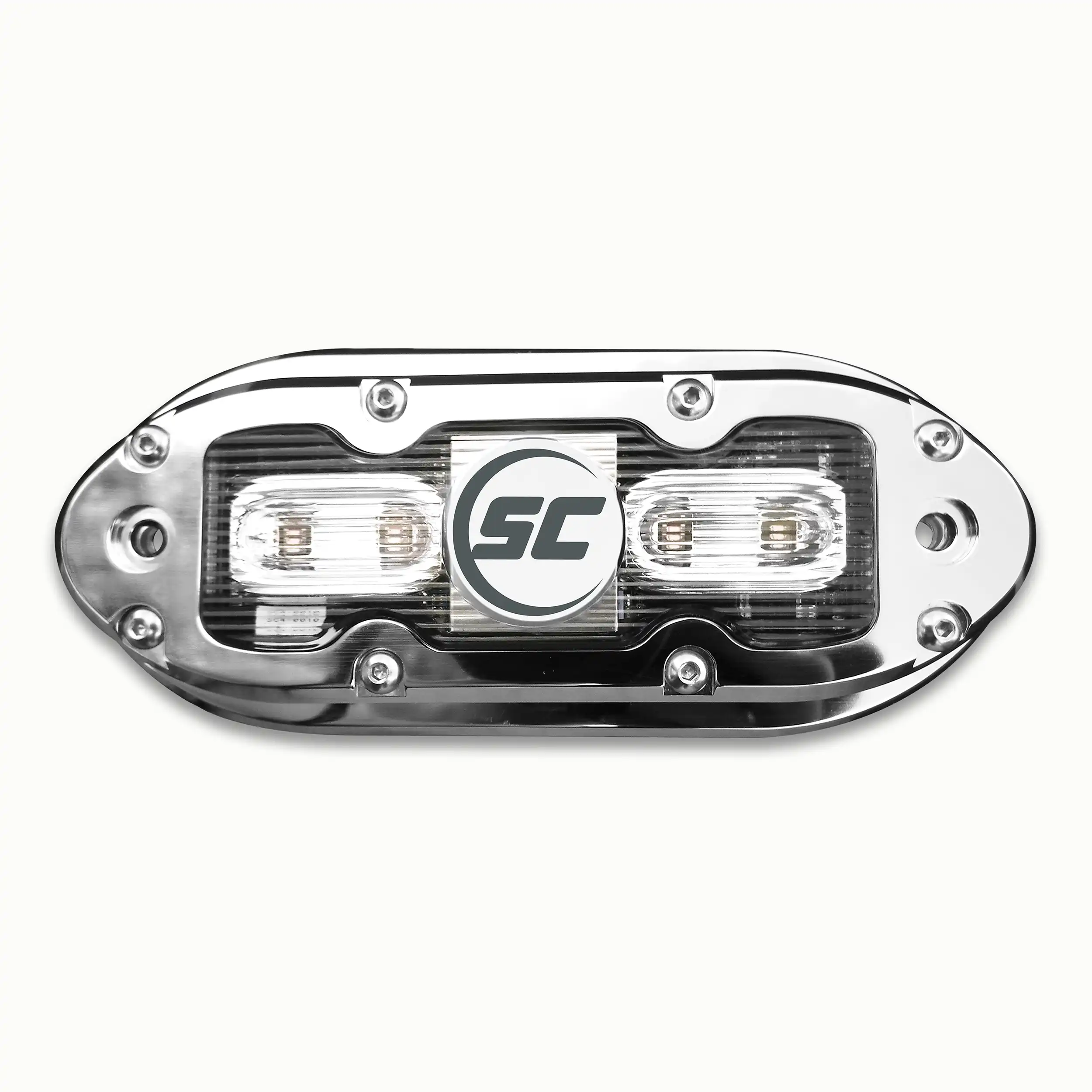

Great White

• SCM-4-GW-20
