Illuminate your boat’s interior and exterior with the SHADOW-CASTER Marine Mini Neon Light Strip. This compact, high-density RGB LED strip delivers smooth, colour-changing illumination for steps, hatches, coves, shelves, and compartments. Featuring a smaller bend radius and an integrated light diffuser, it ensures a seamless neon glow. With an IP67 waterproof design, 12V compatibility, and easy installation, it’s perfect for center consoles, fishing boats, pontoon boats, and yachts. Available in 8ft and 16ft lengths, it can be hardwired or paired with a SHADOW-CASTER LED controller for full brightness and colour control.
SCM-AL-MINI-NEON
$329.00 – $515.00
Description

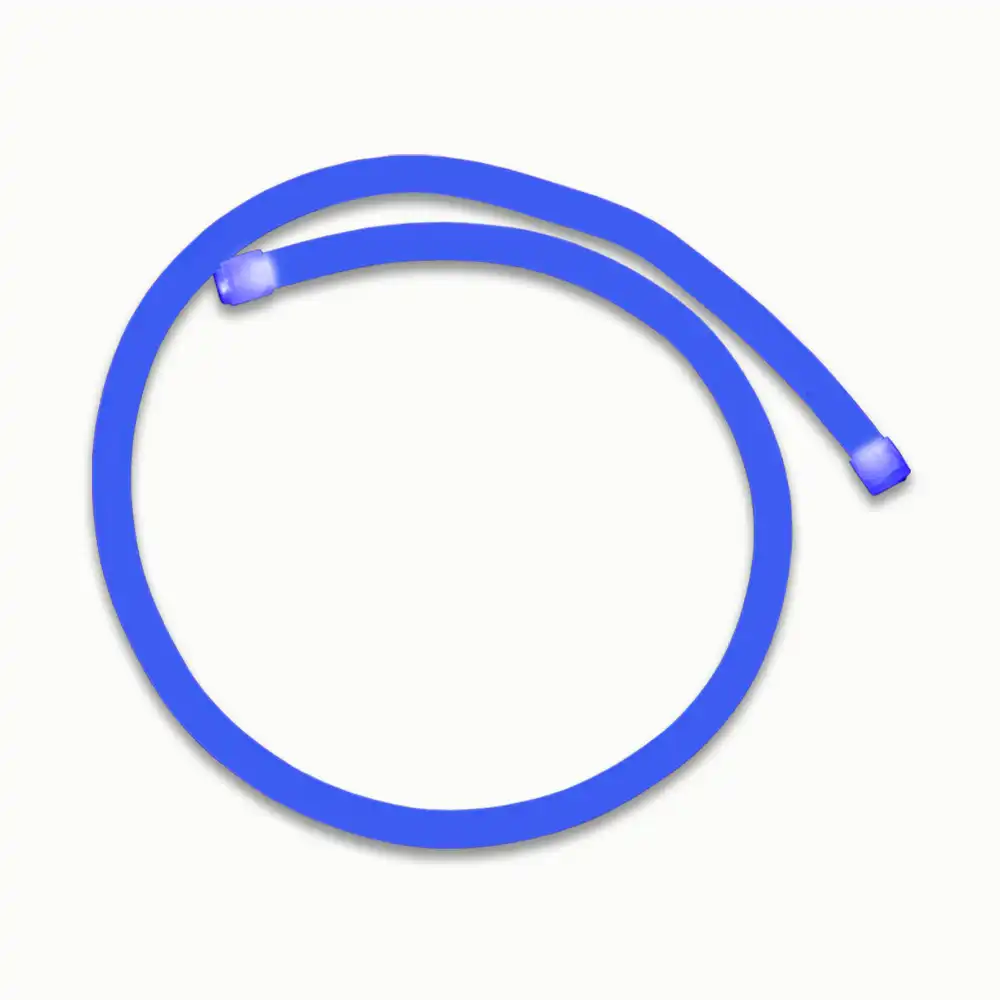

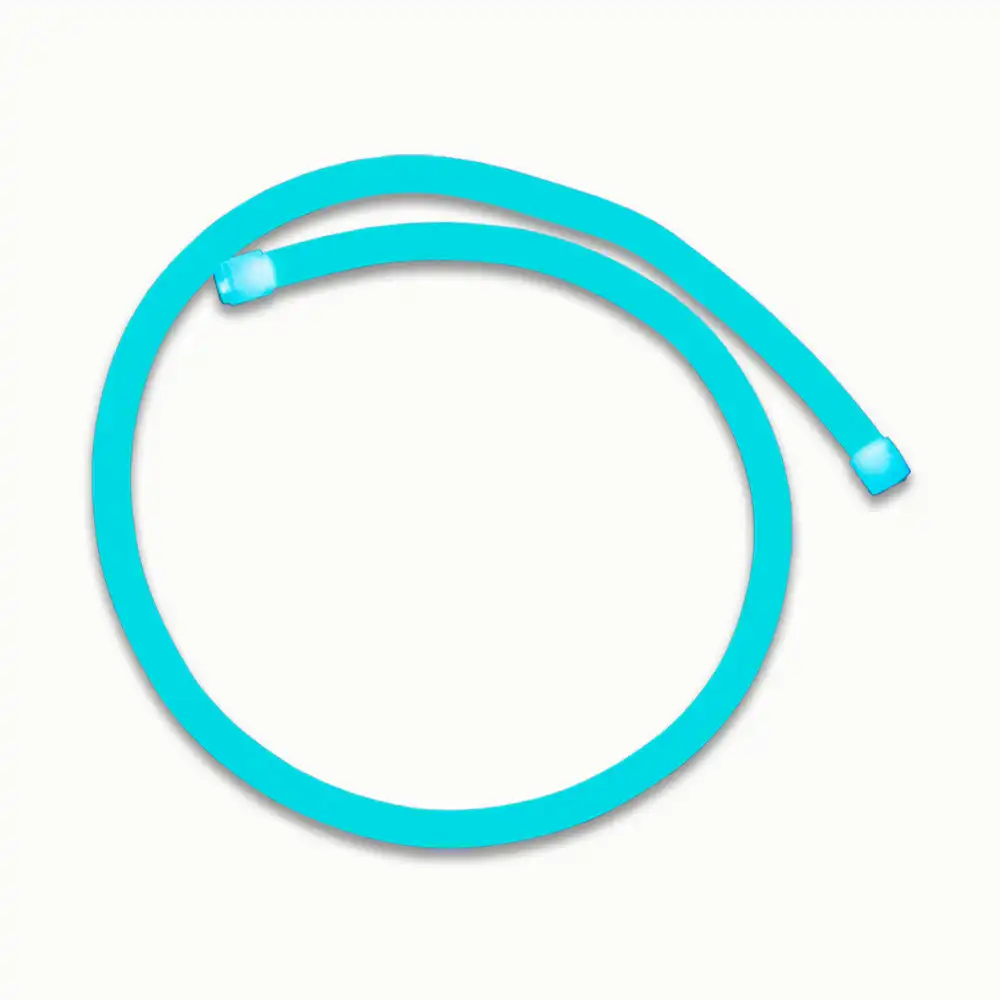

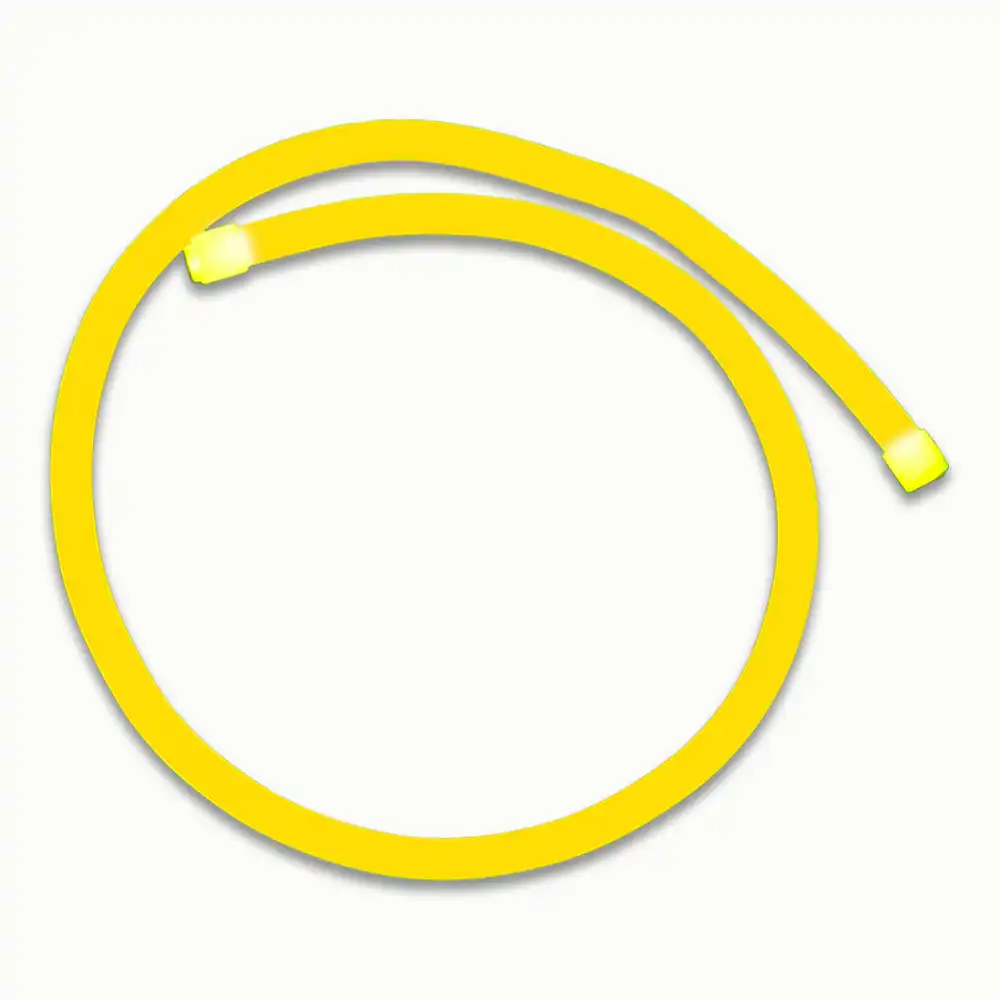

The SHADOW-CASTER marine mini neon light strip provides diffuse colour changing RGB lighting to accent areas, hatches, steps, coves, shelves and compartments. For use with center console boats, fishing boats, pontoon boats, sports boats and yachts.
Slightly smaller than our standard neon marine light strip (SCM-AL-NEON), the SCM-AL-MINI-NEON has a smaller bend radius and a greater LED density (LEDs/meter).
The SCM-AL-MINI-NEON versions are recommended where the strip will be directly visible as they have an integrated light diffuser that creates a pleasant continuous lighting look.
SHADOW-CASTER marine mini neon light strip comes in either 8 or 16 ft lengths and can be cut down to fit into a particular application. As there are no integrated control electronics, the strip can either be hardwired to be a certain colour or connected to a SHADOW-CASTER marine LED controller to fully control colour and brightness.
TECHNICAL INFORMATION
- RGB colour
- 120° beam angle
- 120 LEDs per meter
- 25mm cut segments
- 15W per meter
- 1.2A per meter
- 12V only

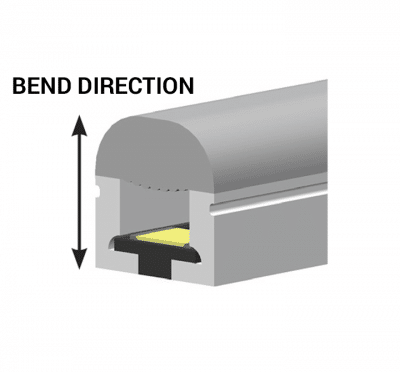

- 25mm bend radius
- 10mm x 11mm
- 6m lead wire
- IP67 waterproof design
- Silicone jacket material
- -30 – 60ºC operating temperature

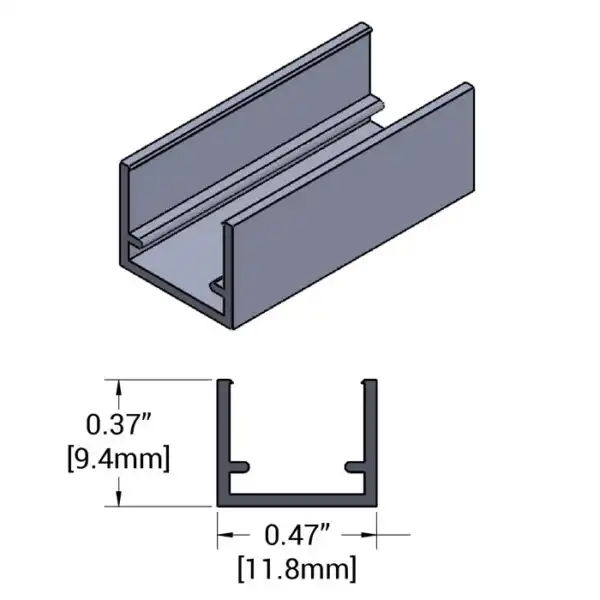

- Compatible with SCM-AL-MINI-TRACK-1M
DATA SHEET LINK
LENGTHS AVAILABLE / PART NUMBER
SCM-AL-MINI-NEON-08
- 2.5m Length
- 8 Clips & 1 End Cap
SCM-AL-MINI-NEON-16
- 5m Length
- 16 Clips & 2 End Caps
Additional information
| LEDs | SCM-AL-MINI-NEON-08, SCM-AL-MINI-NEON-16 |
|---|
