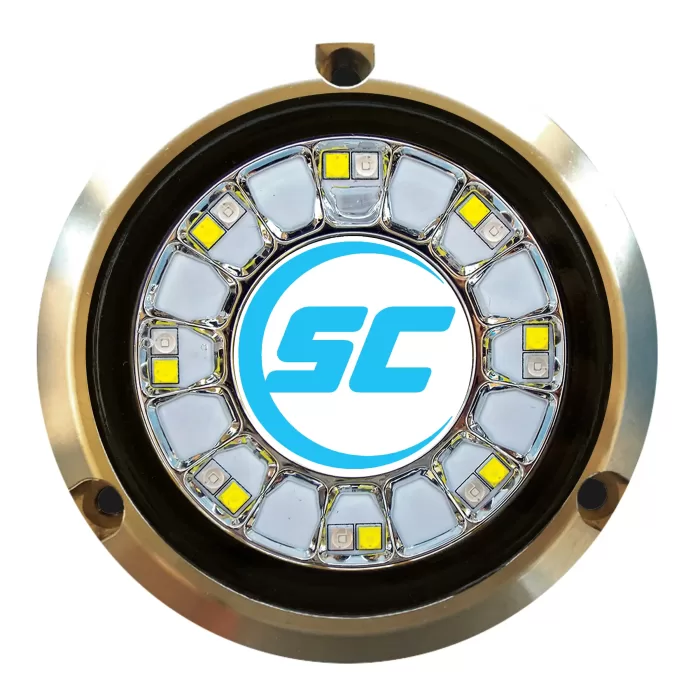

SCR-16

Description

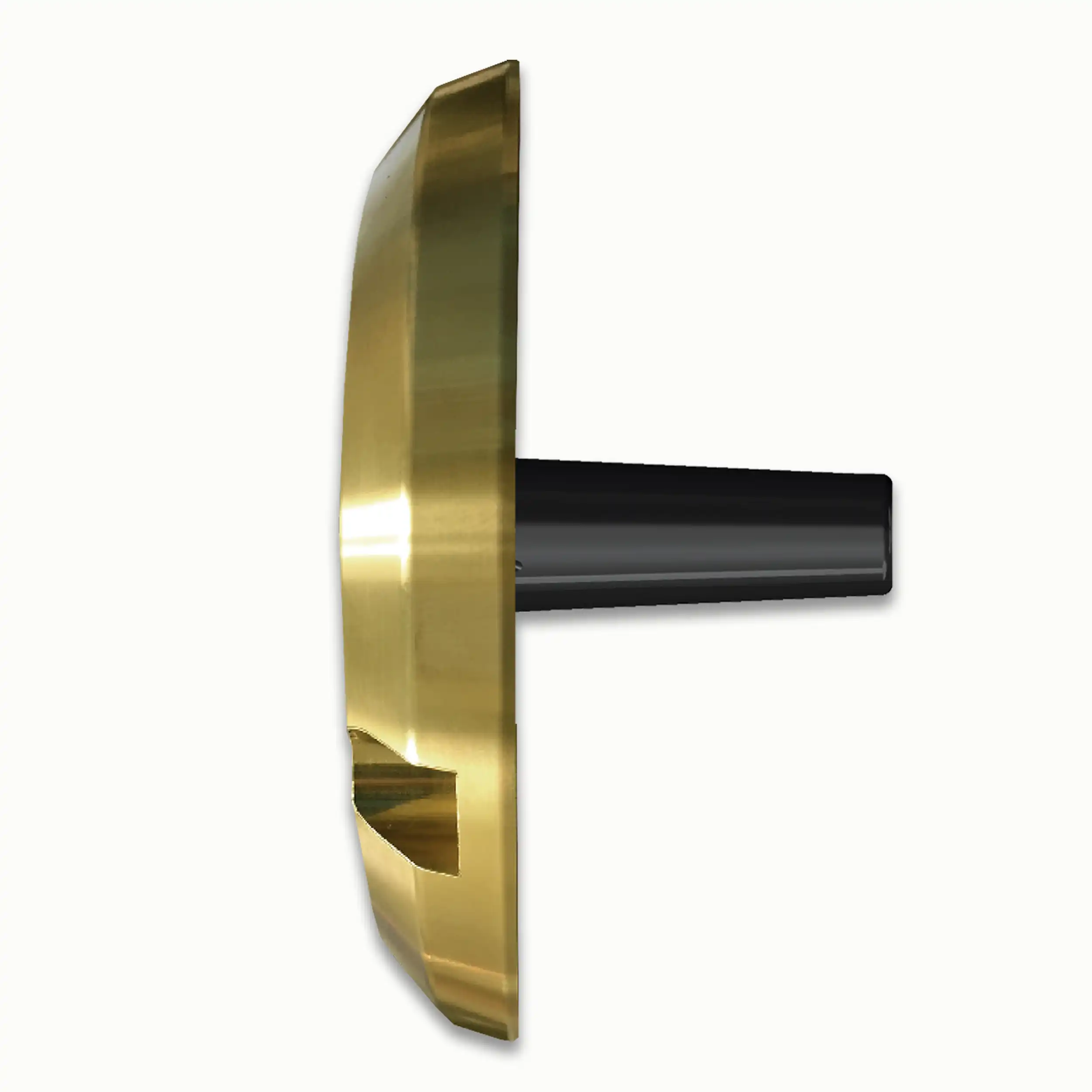

The SCR-16 is a 16 LED round underwater marine light and provides your vessel with 60 watts of intense LED lighting. The SCR-16’s are designed within a compact 4″  diameter bronze housing for under waterline surface mounting. Single or two-colour versions available with variable brightness and a wide array of control options.

KEY FEATURES

• Proprietary clear-gel-filled design, injected through entire unit – eliminates condensation and/or water intrusion under stress
• Tough, scratch resistant, tempered glass lens with bronze housing – impervious to acetone, solvents and demanding marine environments
• Transient surge and reverse polarity protection – dramatically prolongs unit life
• Thermal throttling technology – enables safe operation even out of water
• From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
• 3-Year Warranty

TECHNICAL INFORMATION

• Up to 7,000 lumens
• 120° beam angle
• 60 watts power draw
• 5 amps operating current draw @ 12 volts
• 10-30 volts input
• 102 mm OD
• IP68 fully submersible waterproof design

DATA SHEET LINK

• SCR-16-Series-Underwater-LED-Lights-Datasheet
• SCR-BW-Operating-Instruction-Sheet_HR
• SCR-Series_24_16-Installation-instructions
• SCR-Series-Single-Color-Operating-Instructions

COLOURS AVAILABLE / PART NUMBER

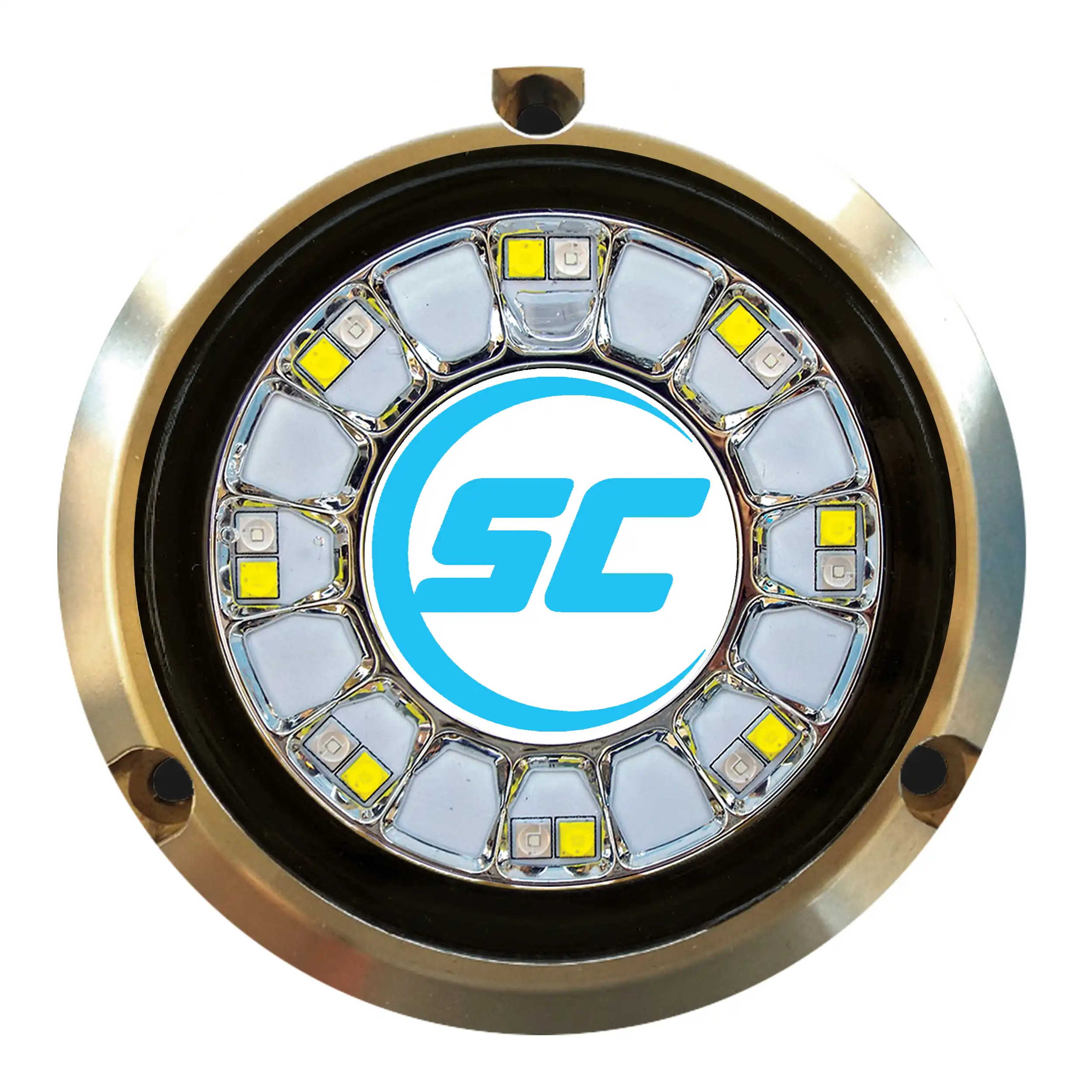

Blue & White

• SCR-16-BW-BZ-10

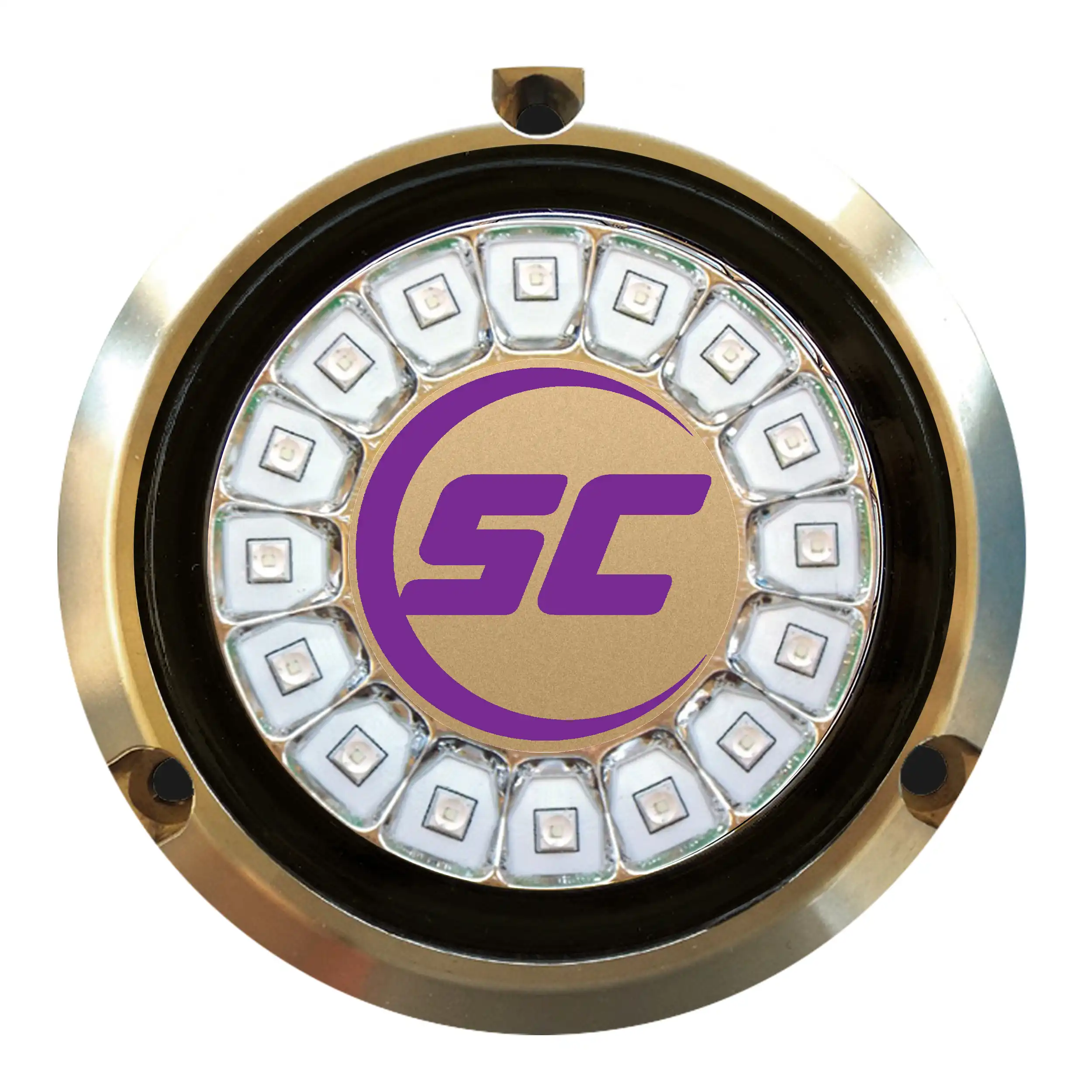

Ultra Blue

• SCR-16-UB-BZ-10

Bimini Blue

• SCR-16-BB-BZ-10

Cool Red

• SCR-16-CR-BZ-10

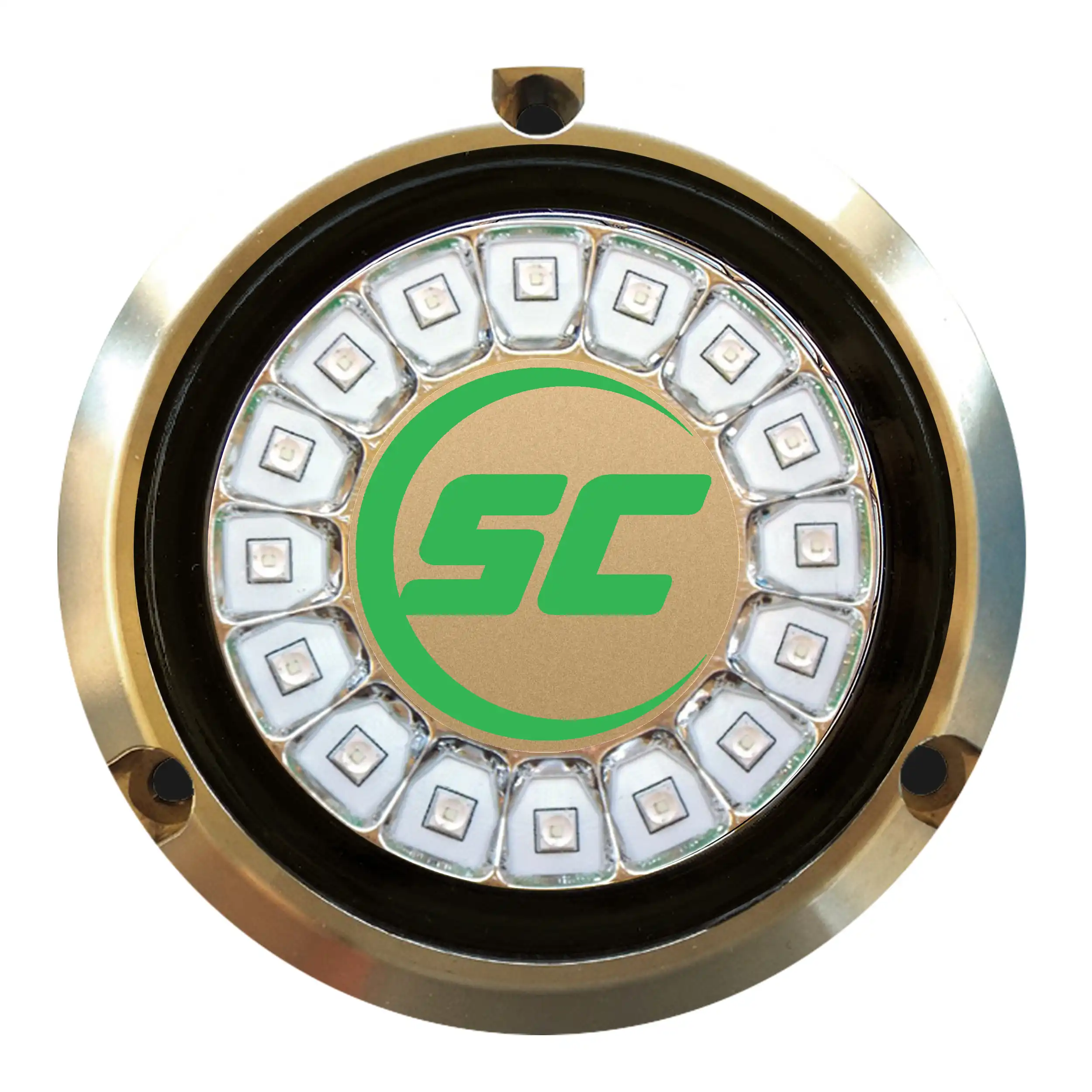

Aqua Green

• SCR-16-AG-BZ-10

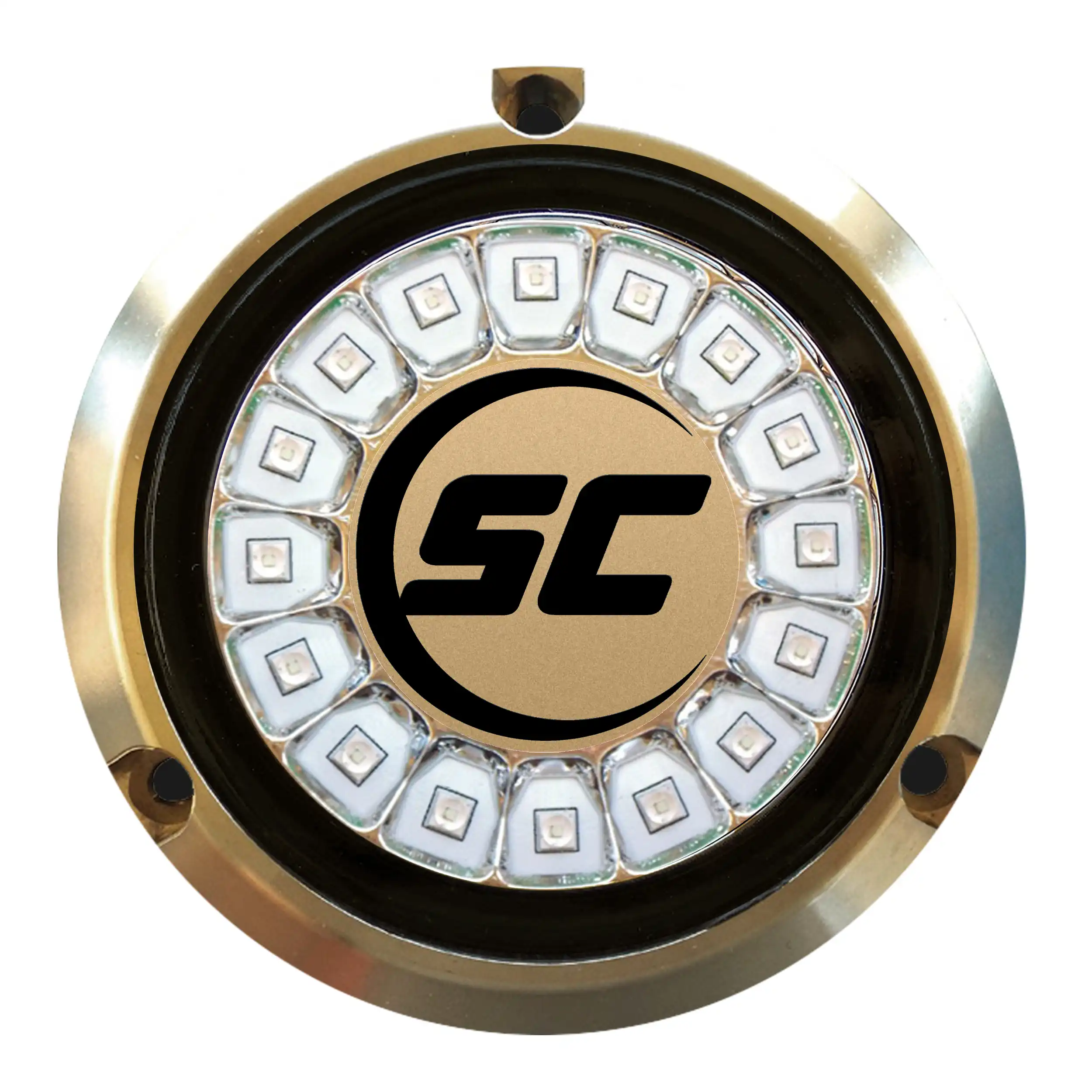

Great White

• SCR-16-GW-BZ-10



CONTROL OPTIONS:

POWER TOGGLE CONTROL

• Quickly toggle power source to advance to next color or brightness level.
• Used with a single color lights allows for light on/off, fade in/out and strobe.
• Two color lights allows either single color on, fade between colors and strobe current color.

PUSH BUTTON CONTROL

• Connect to any push button controller. Ask about Shadow-Caster’s highest quality, marine-grade push button controllers, optimized to work seamlessly with your lighting requirements.
• Used with a single colour lights allows for light on/off, fade in/out and strobe.
• Two colour lights allows either single colour on, fade between colours and strobe current colour.

SHADOW-NET CONTROL

• Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® control module (SCM-MFD-LC) & app.
• Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of color and fading, dimming, strobe rate, music sync, multiple zones and much more.
