SCR-24

Description

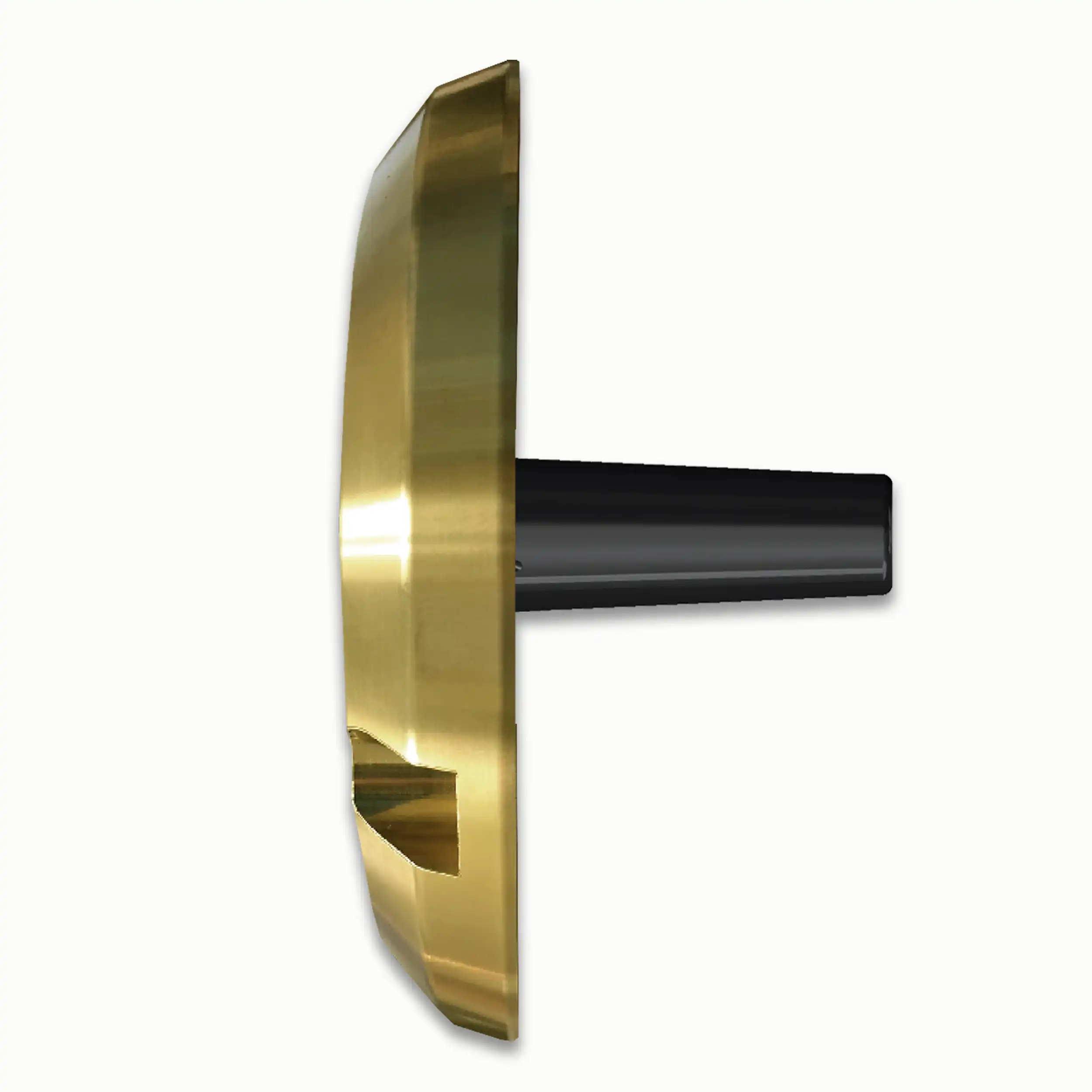

The SCR-24 is a 24 LED round underwater marine light and provides your vessel with 90 watts of intense LED lighting. The SCR-24’s are designed within a compact 4″ diameter bronze housing for under waterline surface mounting. Single or multi-colour versions available with variable brightness and a wide array of control options.



KEY FEATURES

• Proprietary clear-gel-filled design, injected through entire unit — eliminates condensation and/or water intrusion under stress
• Tough, scratch resistant, tempered glass lens with bronze housing — impervious to acetone, solvents and demanding marine environments
• Transient surge and reverse polarity protection — dramatically prolongs unit life
• Thermal throttling technology — enables safe operation even out of water
• From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
• Full colour light “CC” has 12 built-in colours, and can be enabled with unlimited colours and many other advanced features using Shadow-NET
• 3-Year Warranty

TECHNICAL INFORMATION

• Up to 7,500 lumens
• 120° beam angle
• 90 watts power draw
• 7.8 amps operating current draw @ 12 volts
• 10-40 volts input
• 102 mm OD
• IP68 fully submersible waterproof design

DATA SHEET LINK

• Standard-Switch-with-SCM-DL-Down-Light
• SCR-24-CC-Operating-Instructions_HR
• SCR-24-Series-Underwater-LED-Lights-Datasheet_HR-1
• SCR-BW-Operating-Instruction-Sheet_HR
• SCR-Series_24_16-Installation-instructions_HR
• SCR-Series-Single-Color-Operating-Instructions_HR

COLOURS AVAILABLE / PART NUMBER

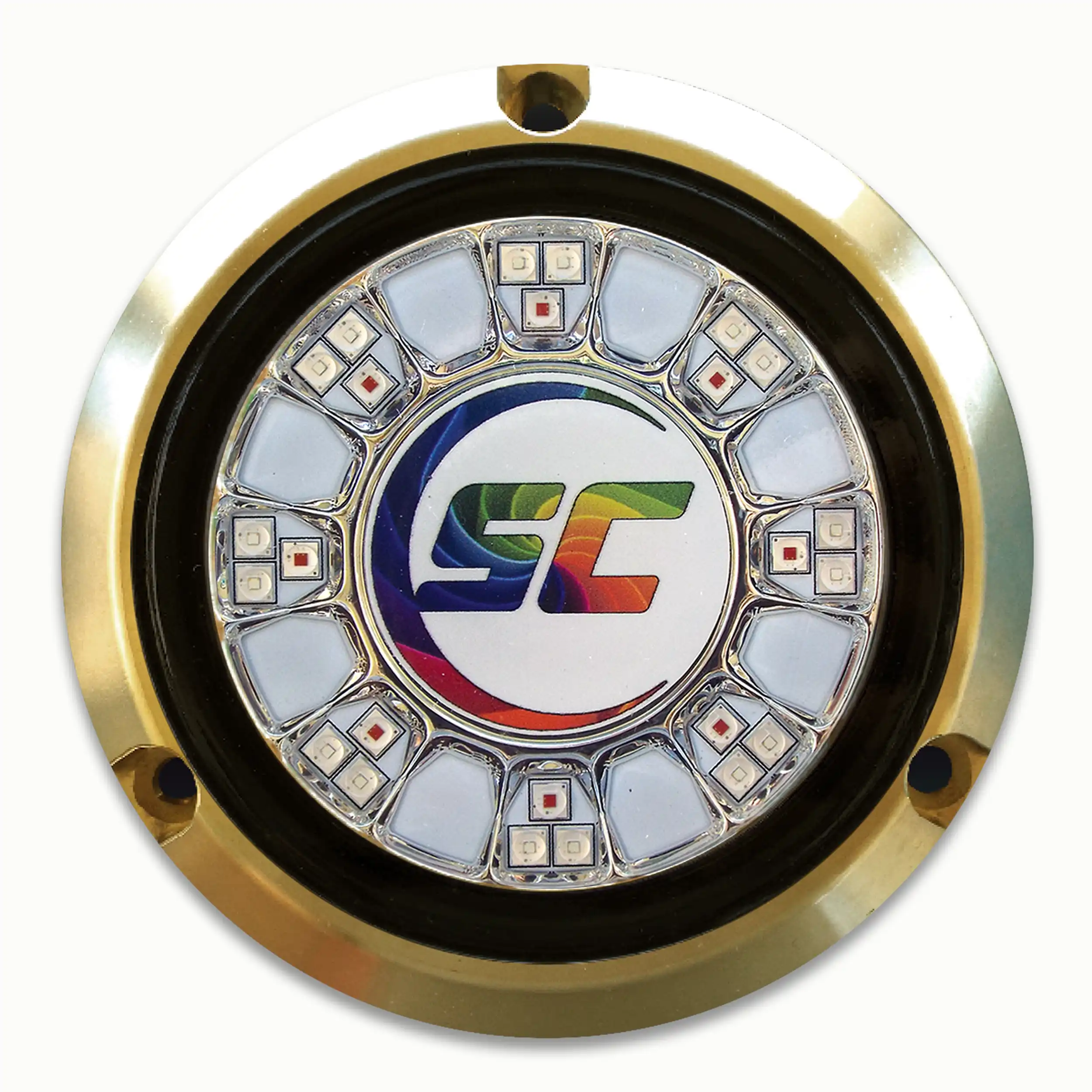

Full Colour – 12-colour standard, or unlimited colours with Shadow-NET

• SCR-24-CC-BZ-10

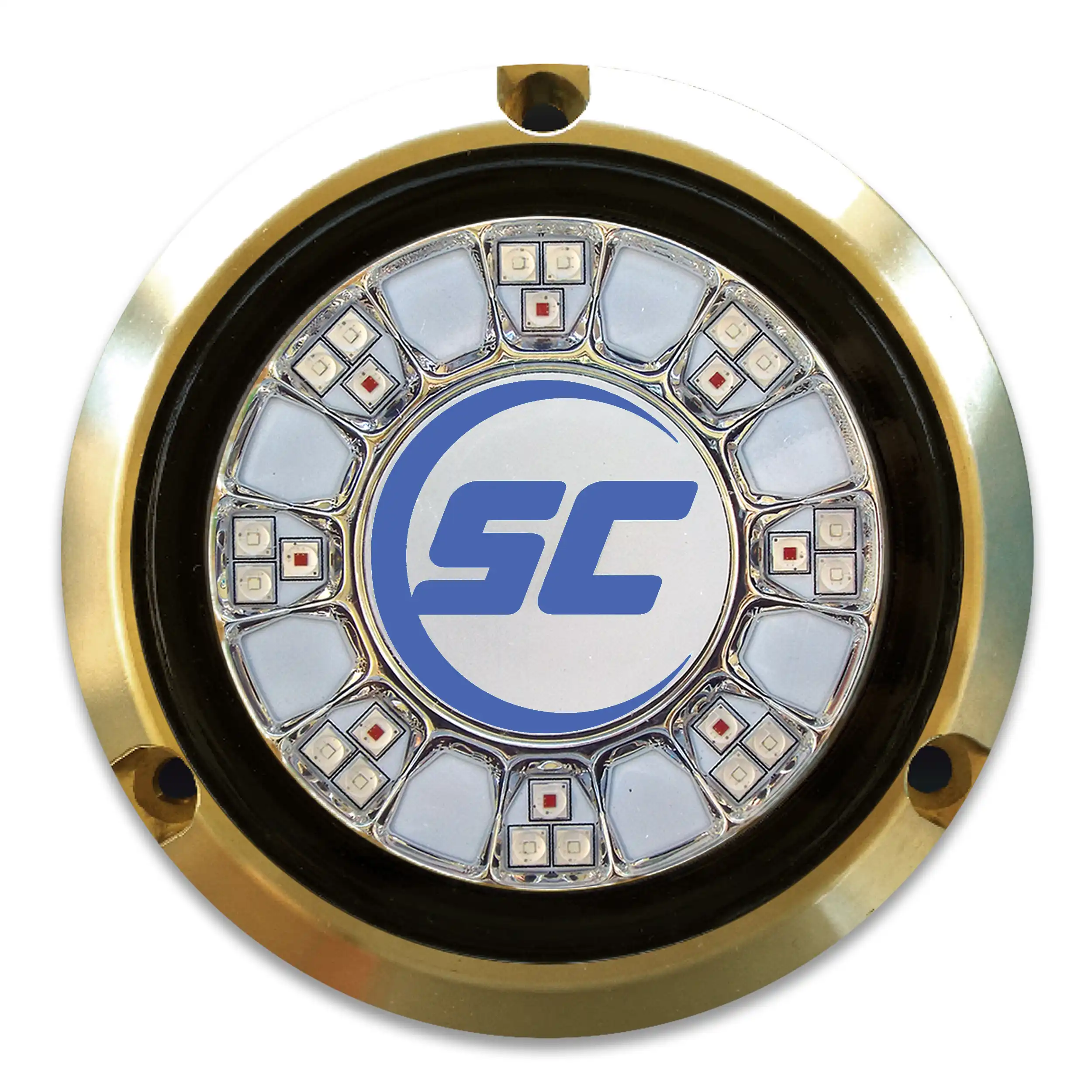

Blue & White

• SCR-24-BW-BZ-10

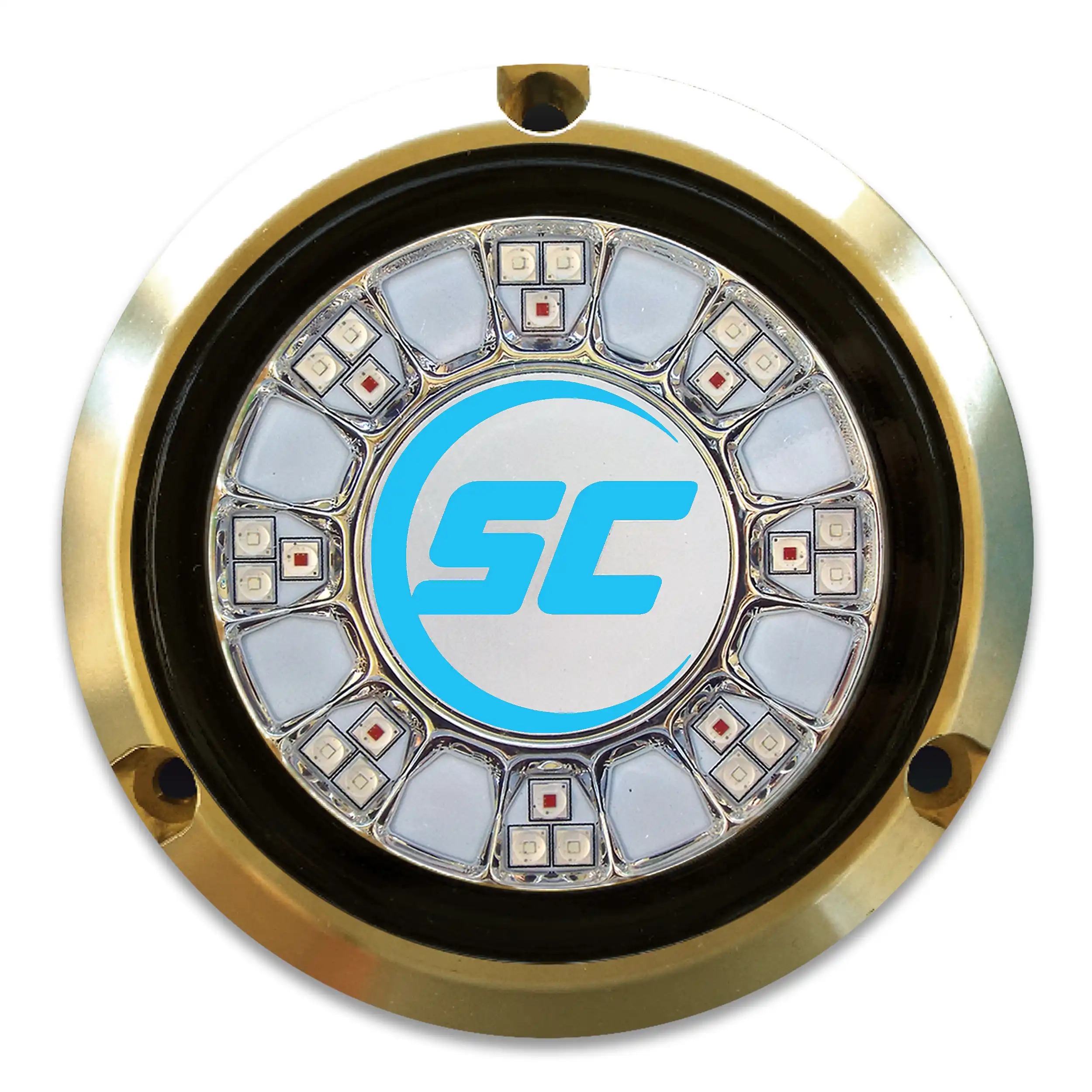

Bimini Blue

• SCR-24-BB-BZ-10

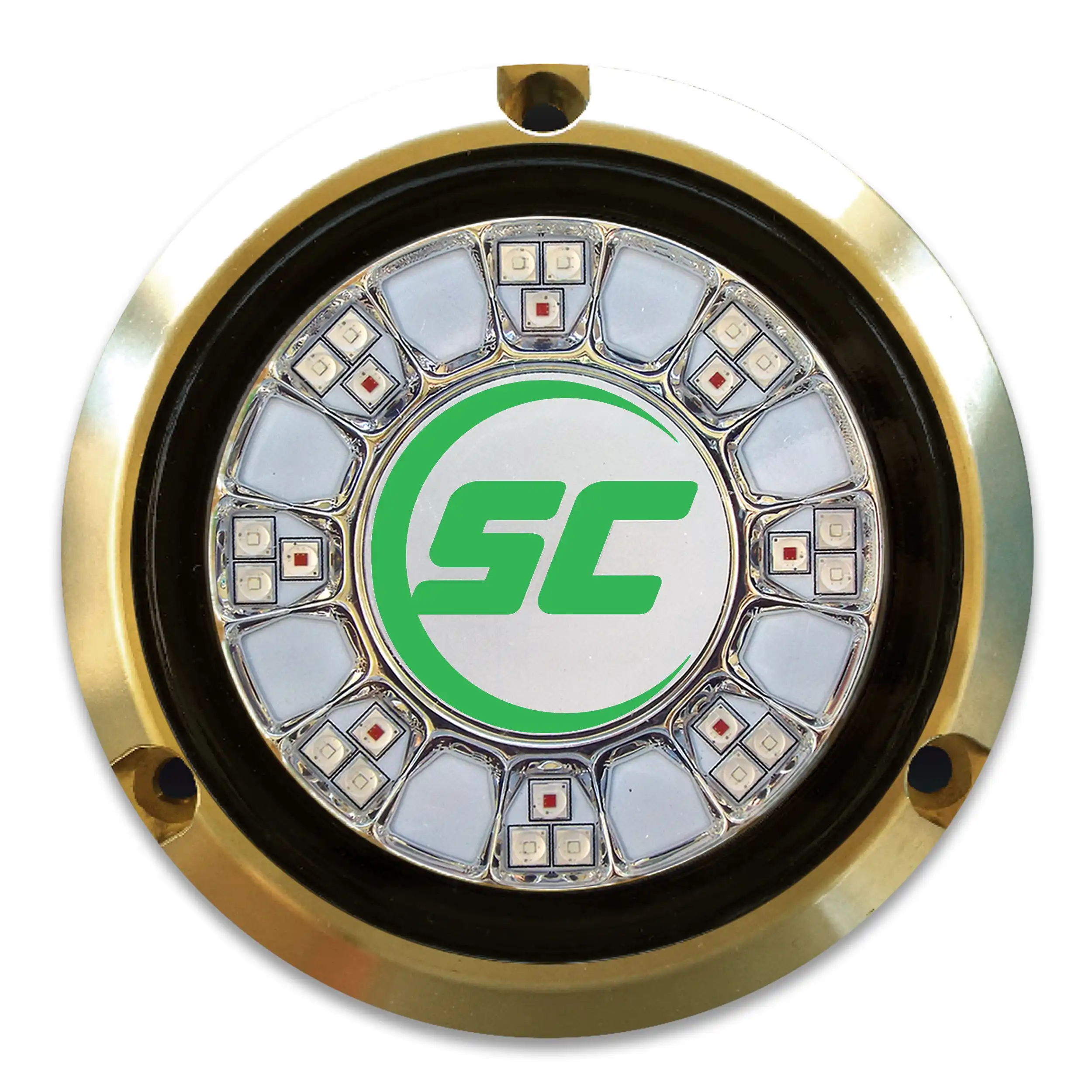

Aqua Green

• SCR-24-AG-BZ-10

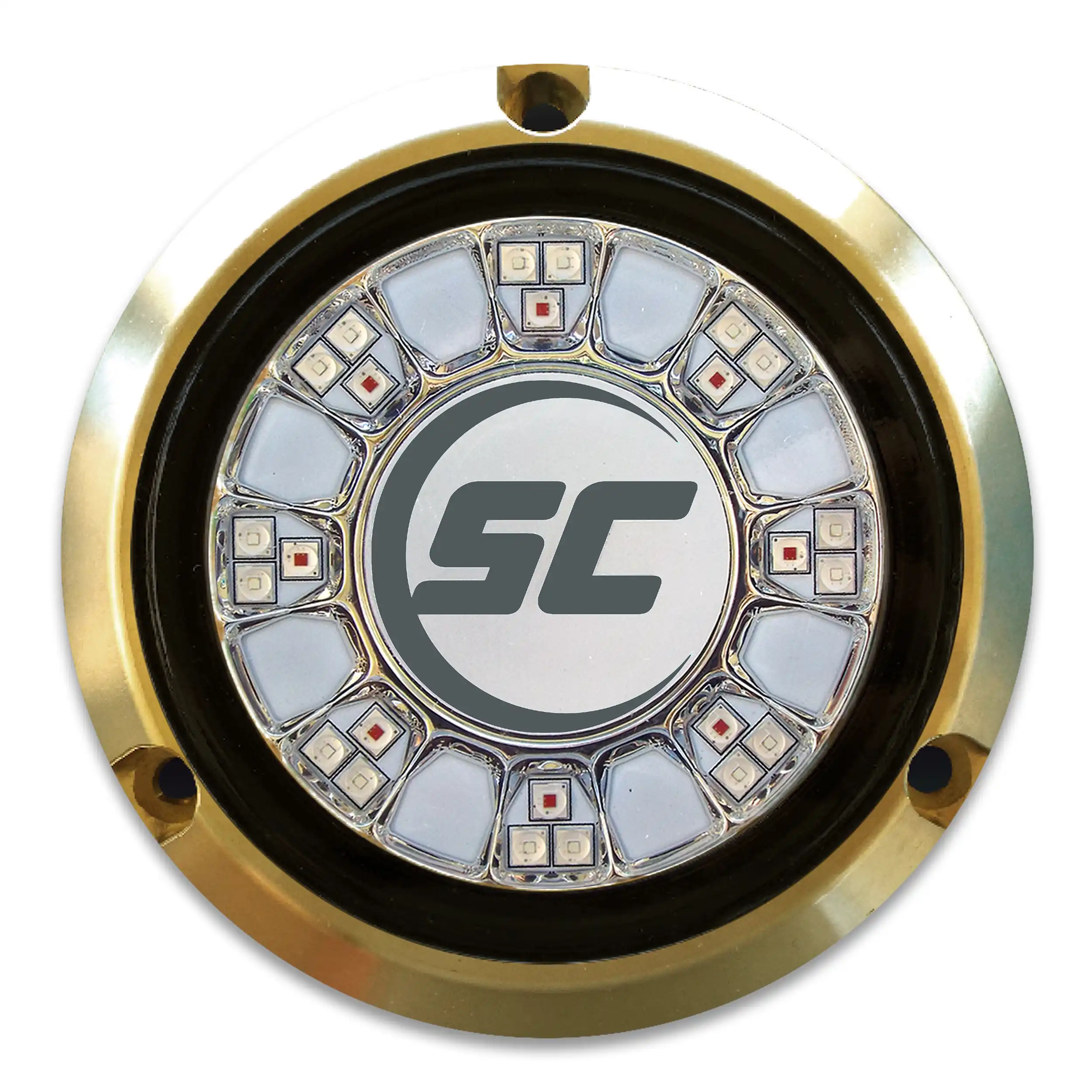

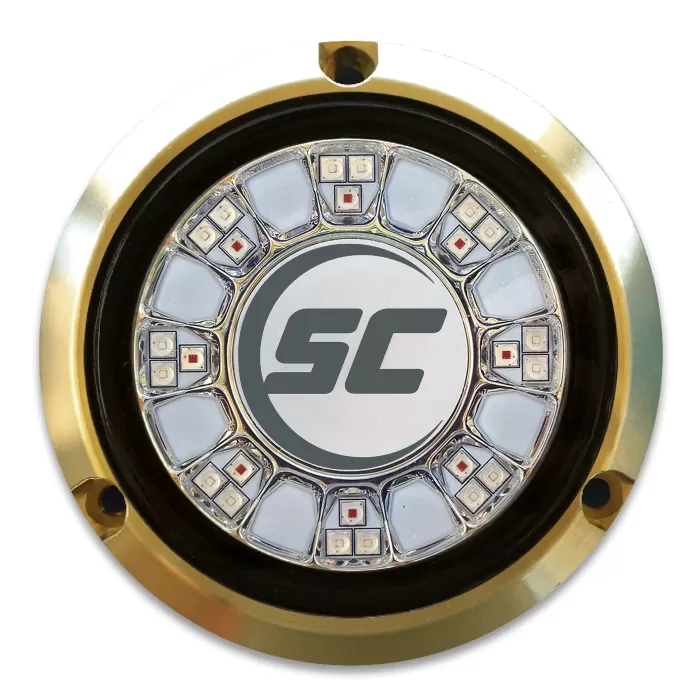

Great White

• SCR-24-GW-BZ-10



CONTROL OPTIONS

POWER TOGGLE CONTROL

• Quickly toggle power source to advance to next colour or brightness level.
• Used with a single colour lights allows for light on/off, fade in/out and strobe.
• Two colour lights allows either single colour on, fade between colours and strobe current colour.
• Full colour lights allow for any single colour on, fade blue to white, fade through all 12 colours and strobe current colour.



PUSH BUTTON CONTROL

• Connect to any push button controller. Ask about Shadow-Caster’s highest quality, marine-grade push button controllers, optimized to work seamlessly with your lighting requirements.
• Used with a single colour lights allows for light on/off, fade in/out and strobe.
• Two colour lights allows either single colour on, fade between colours and strobe current colour.
• Full colour lights allow for any single colour on, fade blue to white, fade through all 12 colours and strobe current colour.



SHADOW-NET CONTROL

• Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® control module (SCM-MFD-LC) & app.
• Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of colour and fading, dimming, strobe rate, music sync, multiple zones and much more.
