Shadow Caster SC2 2″ ROUND UNDERWATER MARINE LIGHT

Description

SC2 2″ ROUND UNDERWATER MARINE LIGHT

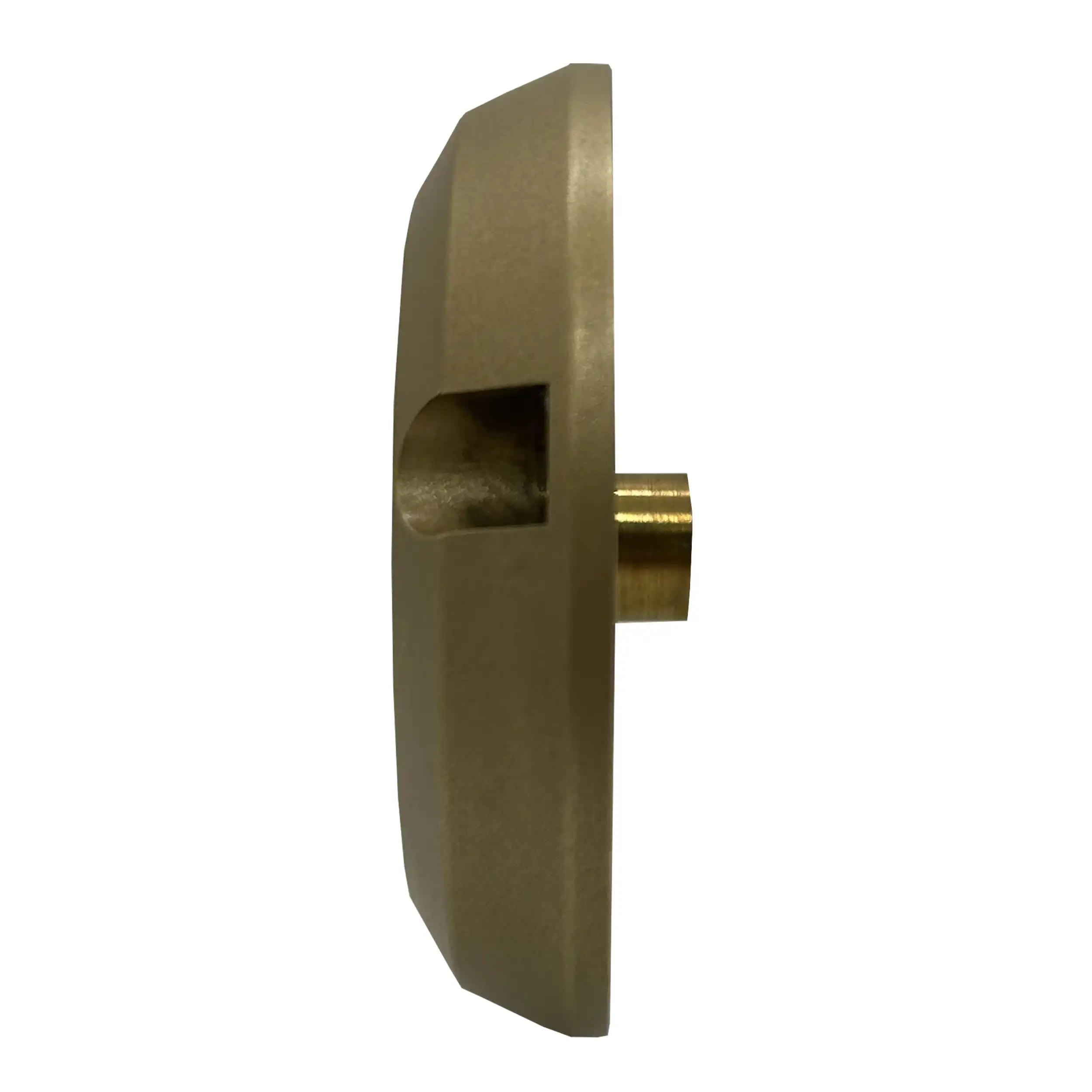

The SC2 Series 2″ round underwater marine light provide your vessel with 24 watts of intense LED lighting. The SC2’s are designed with a sub-compact 2.99” diameter composite or bronze housing for under the waterline surface mounting. Single colour or colour changing versions available with variable brightness and a wide array of control options.

KEY FEATURES

• Proprietary clear-gel-filled design, injected through entire unit — eliminates condensation and/or water intrusion under stress
• Tough, scratch resistant, tempered glass lens with composite or bronze housing — impervious to acetone, solvents and demanding marine environments.
• Transient surge and reverse polarity protection — dramatically prolongs unit life
• Thermal throttling technology — enables safe operation even out of water
• From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
• 3-Year Warranty



TECHNICAL INFORMATION

• Up to 3,000 lumens
• 120° beam angle
• 24 watts power draw
• 2 amps operating current draw @ 12 volts
• 10-30 volts input
• 75.9 mm OD
• IP68 fully submersible waterproof design

DATA SHEET LINK

•  SC2-SM-Series-Data-Sheets_HR



COLOURS AVAILABLE / PART NUMBER

Full Colour – 12-colour standard, or unlimited colours with Shadow-NET

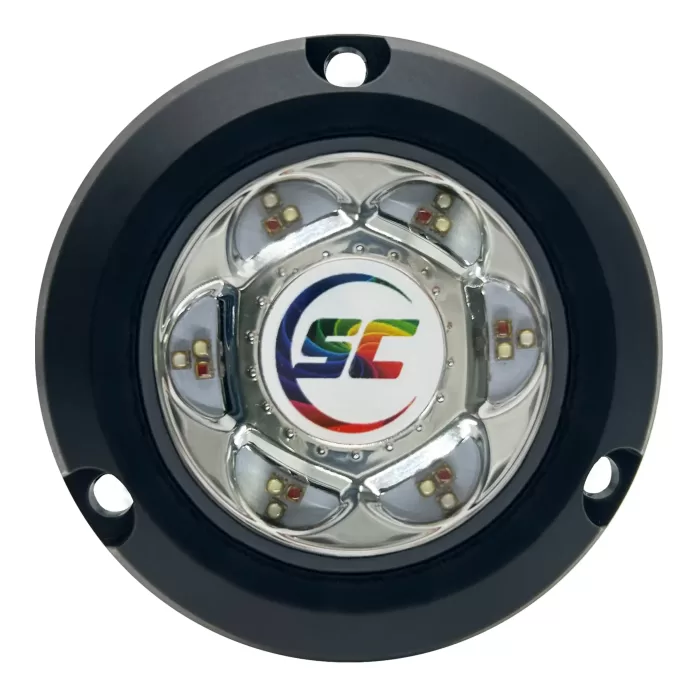

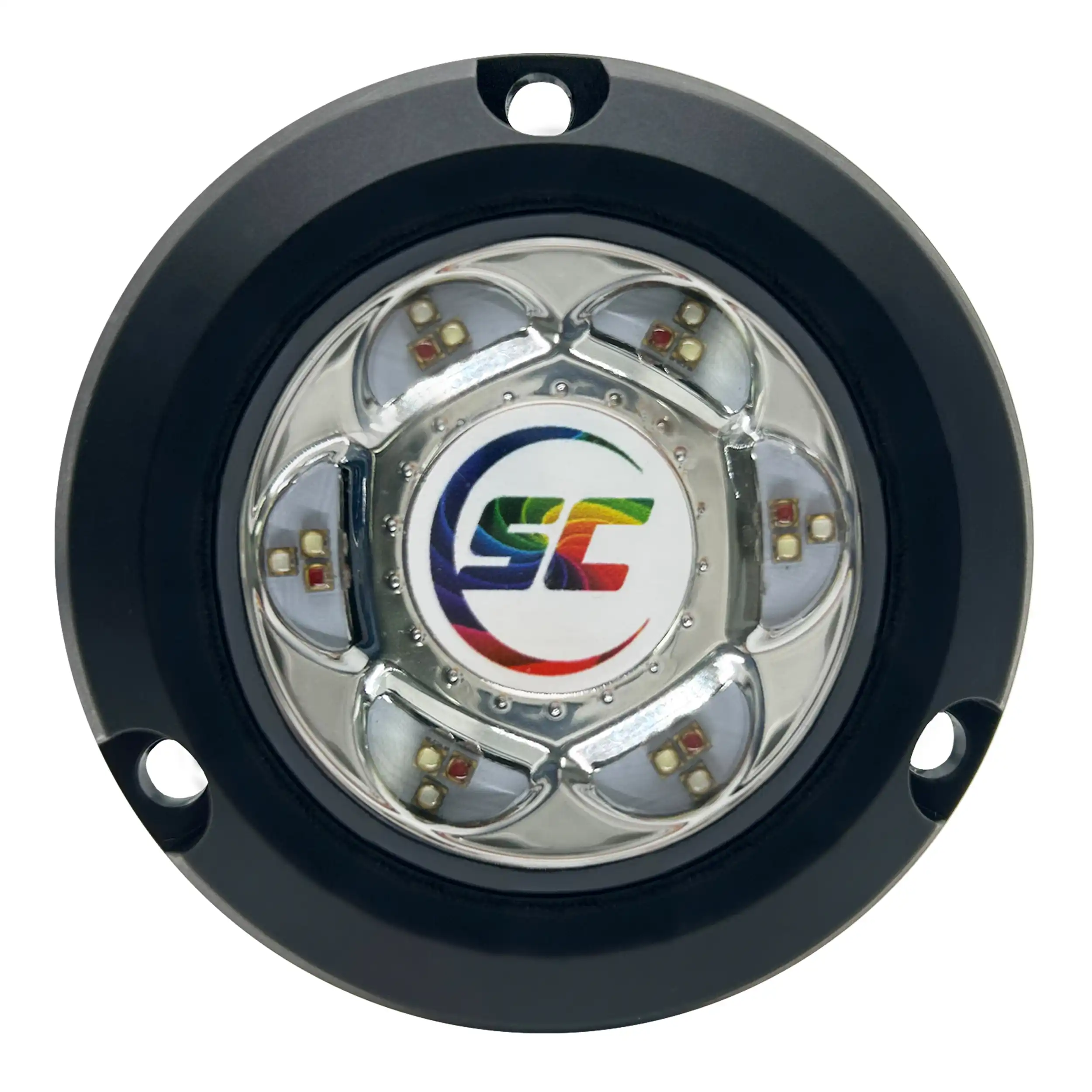

• SC2-CC-CSM (Composite)

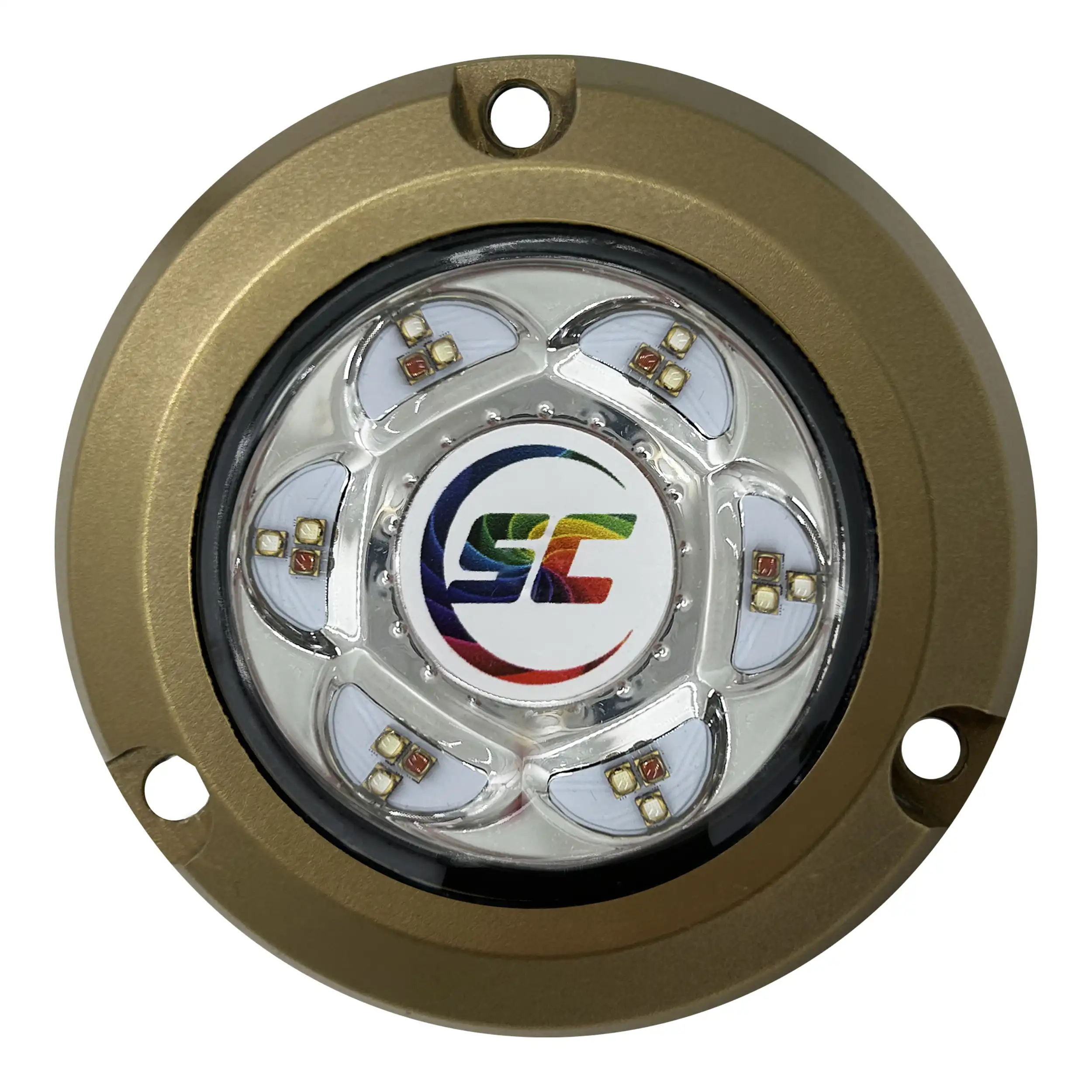

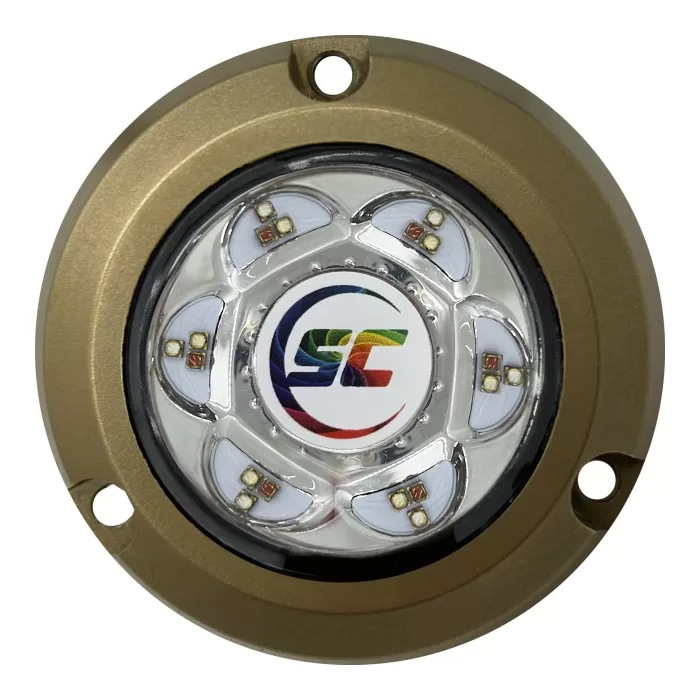

• SC2-CC-BZSM (Bronze)

Bimini Blue

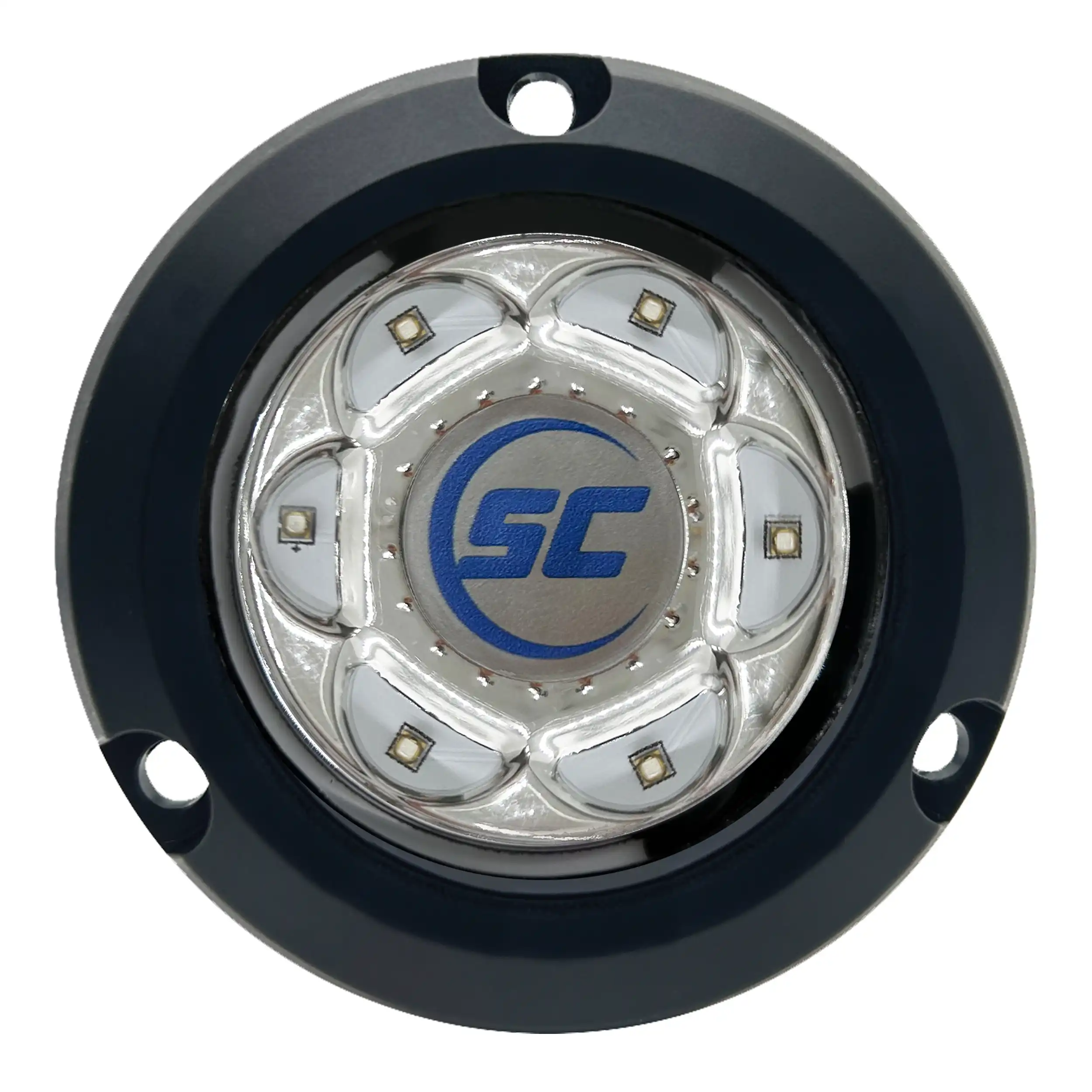

• SC2-BB-CSM (Composite)

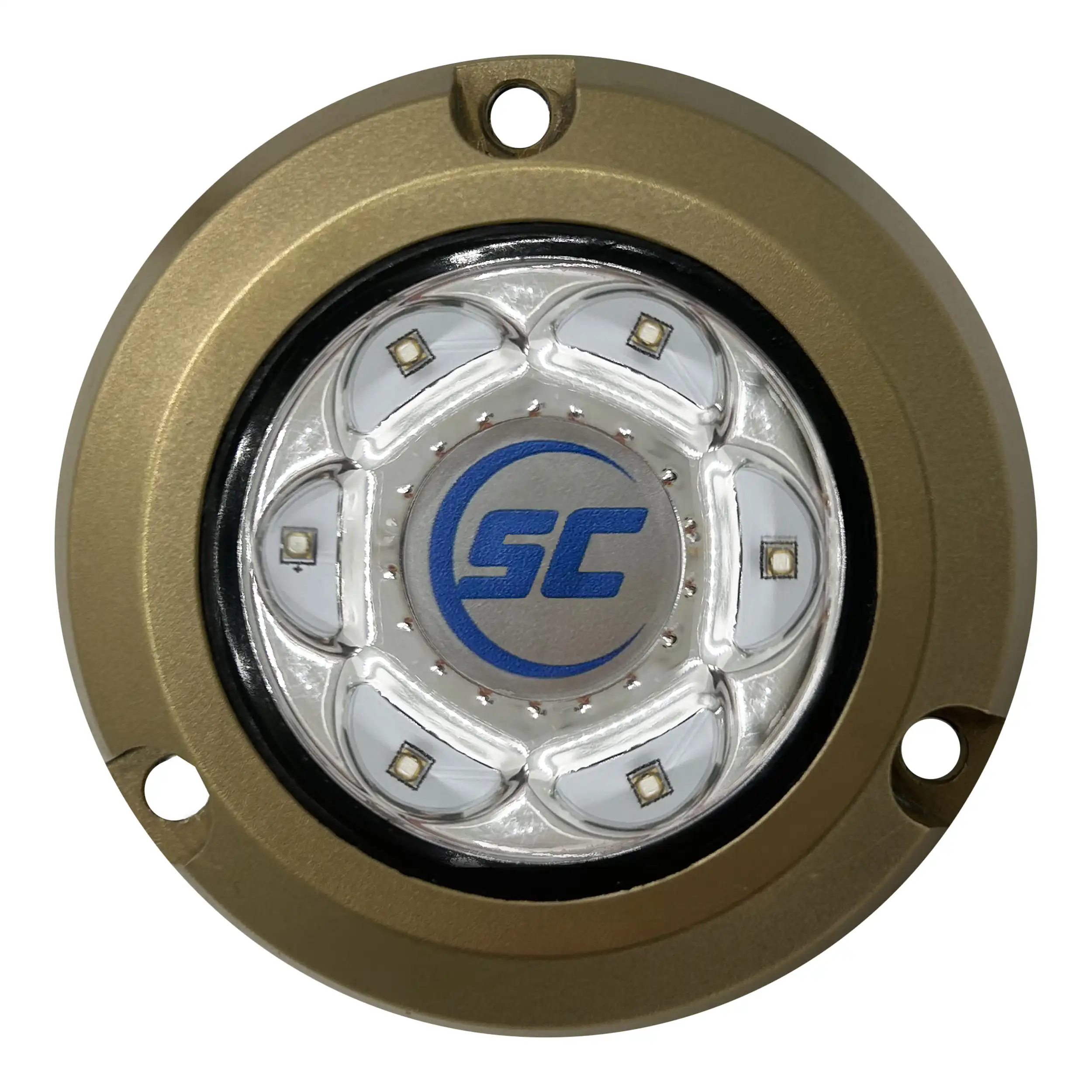

• SC2-BB-BZSM (Bronze)

Great White

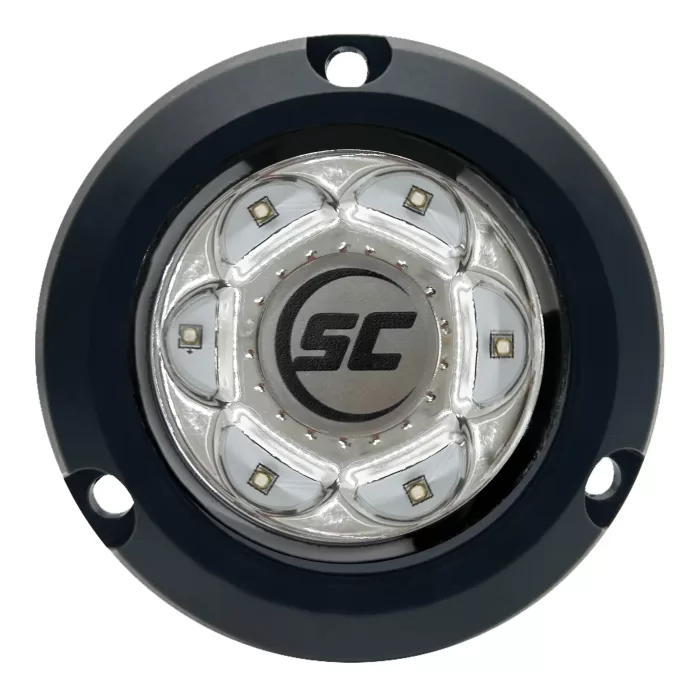

• SC2-GW-CSM (Composite)

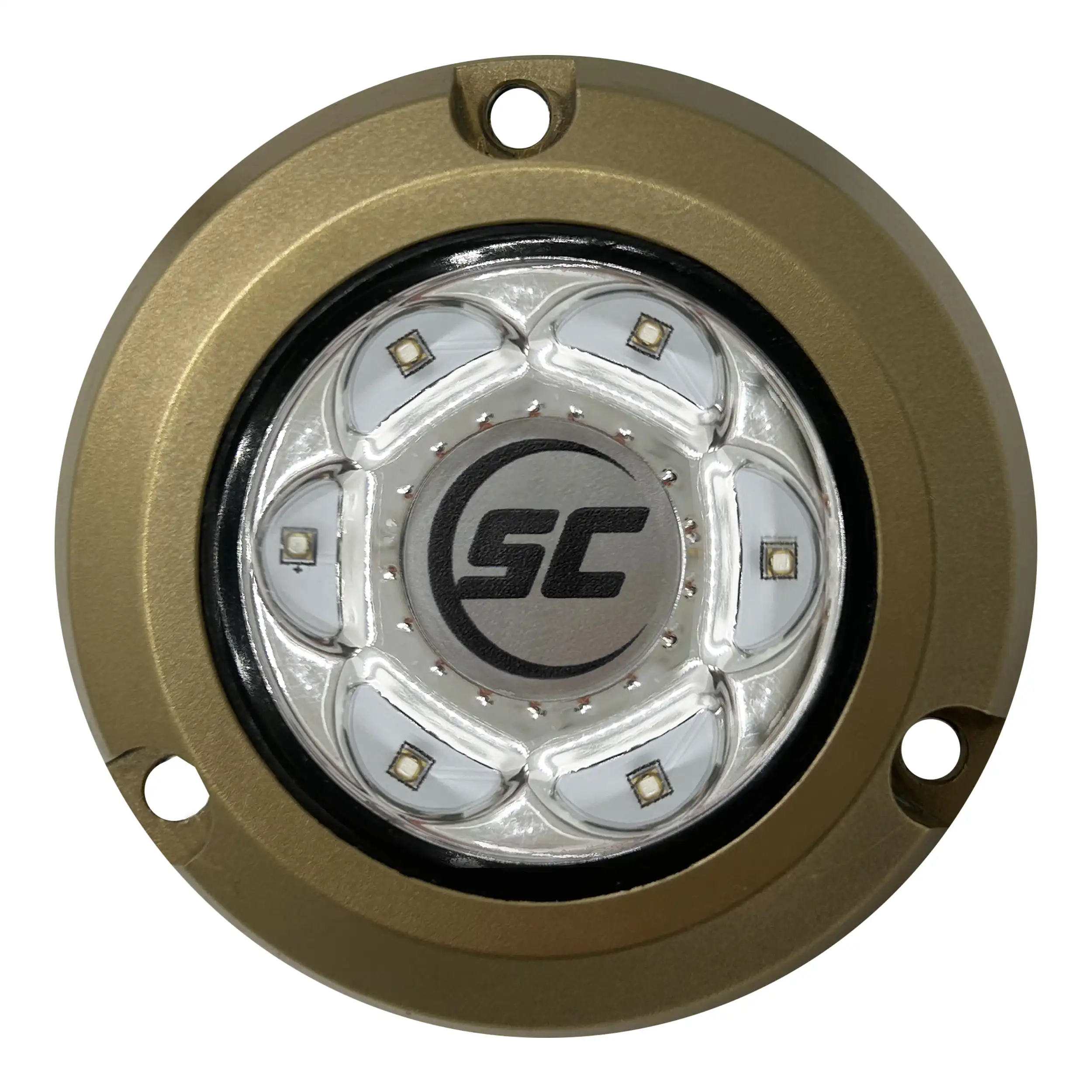

• SC2-GW-BZSM (Bronze)



CONTROL OPTIONS

POWER TOGGLE CONTROL

• Quickly toggle power source to advance to next colour or brightness level.
• Full colour lights allow for any single colour on, fade blue to white, fade through all 12 colours and strobe current colour.

SHADOW-NET CONTROL

• Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® Light Commander control module (SCM-LC-N2K-PLUS-V2) & app.
• Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of colour and fading, dimming, strobe rate, music sync, multiple zones and much more.
