Shadow Caster SC3 Bronze Surface Mount Series

Description

The SC3 Series 76.2 mm (3″) round underwater marine light provide your vessel with 24 watts of intense LED lighting. The SC3’s are designed with a sub-compact 76.2 mm (3″) diameter hard anodized aluminum or bronze housing for under the waterline surface mounting. Single colour or colour changing versions available with variable brightness and a wide array of control options.

Note: The Aluminum models (SC3-ALSM) should only be used on trailer or lift kept boats, and not live in the water boats.

KEY FEATURES

• Proprietary clear-gel-filled design, injected through entire unit — eliminates condensation and/or water intrusion under stress
• Tough, scratch resistant, tempered glass lens with hard anodized aluminum or bronze housing — impervious to acetone, solvents and demanding marine environments. (Note: Aluminum models (SC3-ALSM) should only be used on trailer or lift kept boats, and not live in the water boats).
• Transient surge and reverse polarity protection — dramatically prolongs unit life
• Thermal throttling technology — enables safe operation even out of water
• From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
• 3-Year Warranty



TECHNICAL INFORMATION

• Up to 3,000 lumens
• 120° beam angle
• 24 watts power draw
• 2 amps operating current draw @ 12 volts
• 10-30 volts input

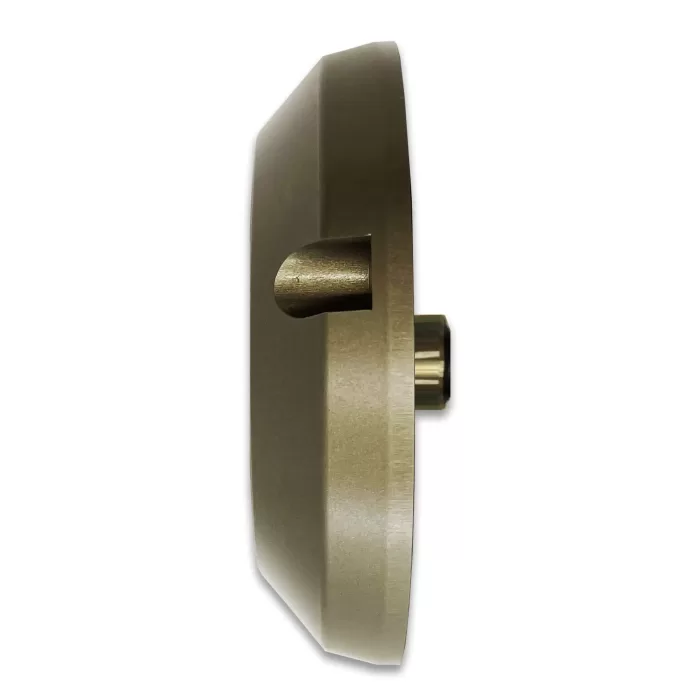

• SC3-ALSM Series: 92 mm OD

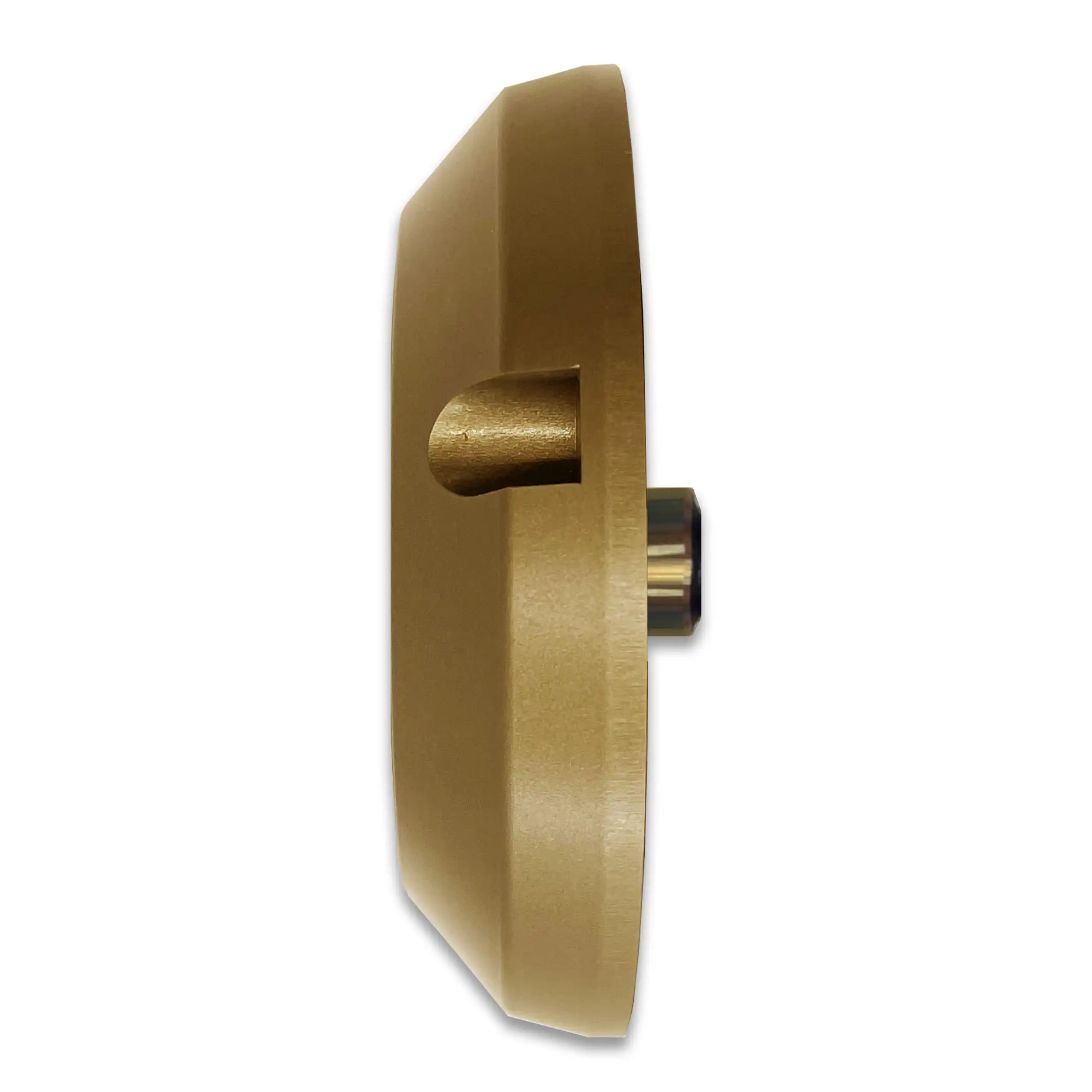

• SC3-BZSM Series: 86 mm OD
• IP68 fully submersible waterproof design
• Note: Aluminum models (SC3-ALSM) should be used on trailer or lift kept boats only, and not live in the water boats.



COLOURS AVAILABLE / PART NUMBER



Full Colour – 12-colour standard, or unlimited colours with Shadow-NET®

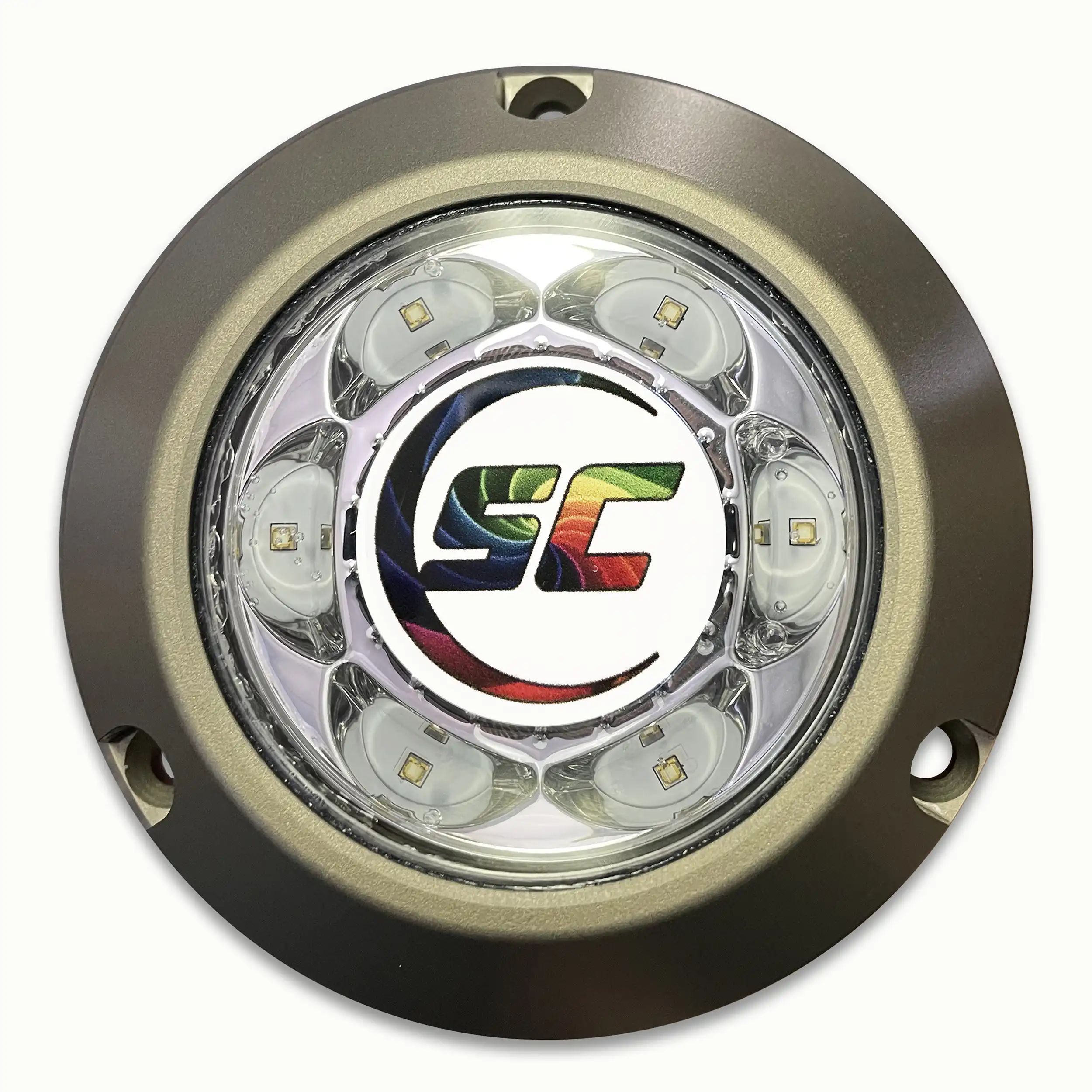

• SC3-CC-ALSM (Alu)

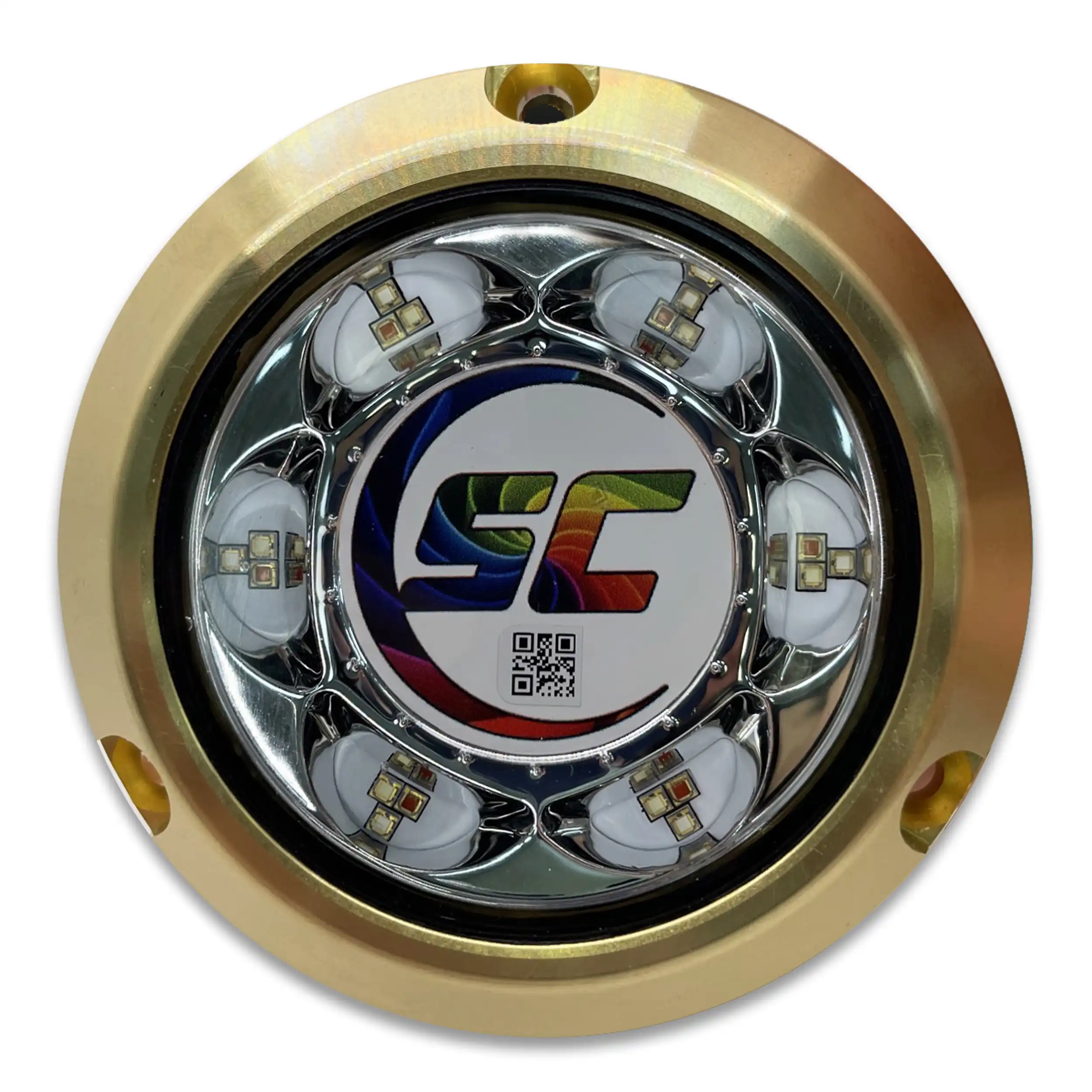

• SC3-CC-BZSM (Bronze)

Blue & White

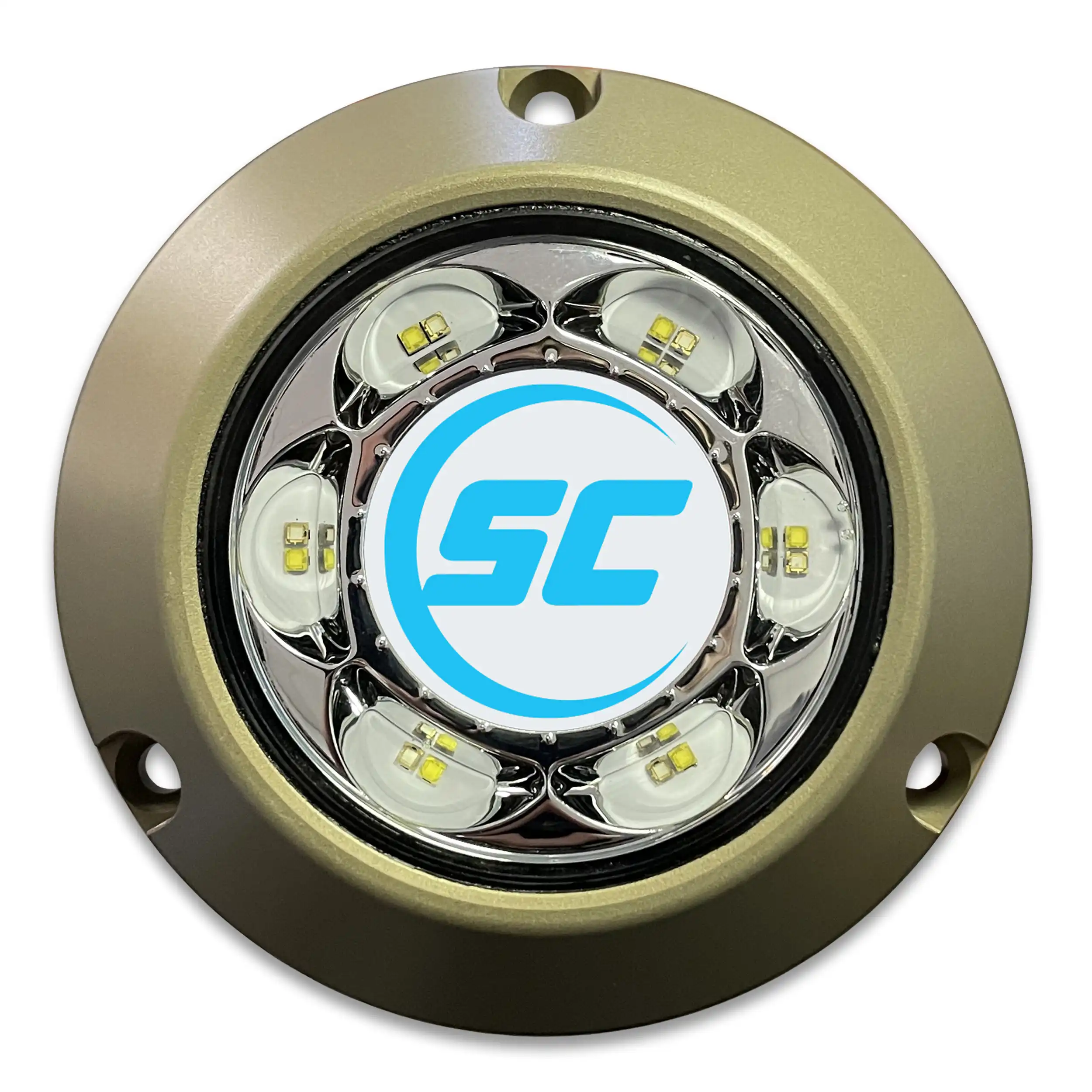

• SC3-BW-ALSM (Alu)

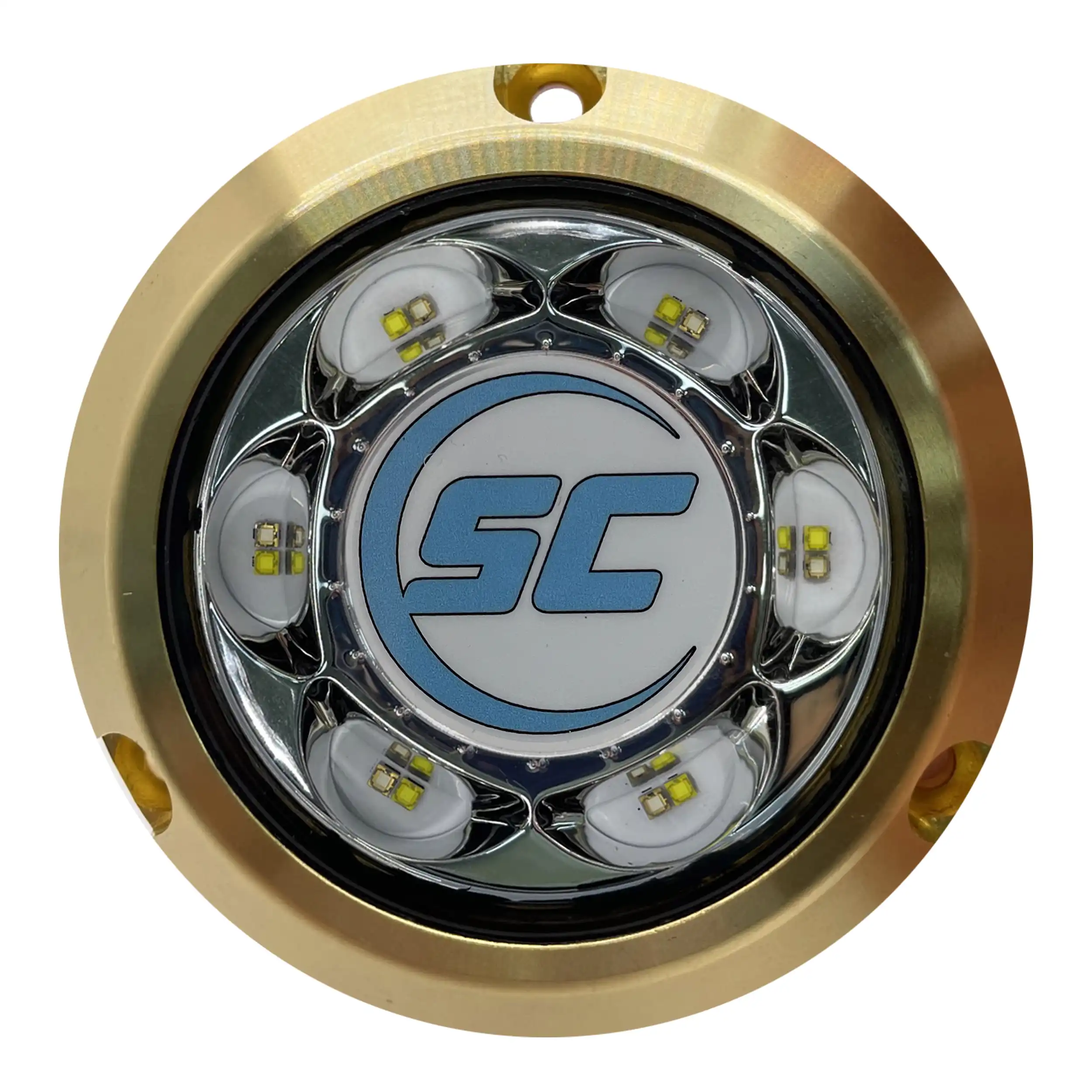

• SC3-BW-BZSM (Bronze)

Bimini Blue

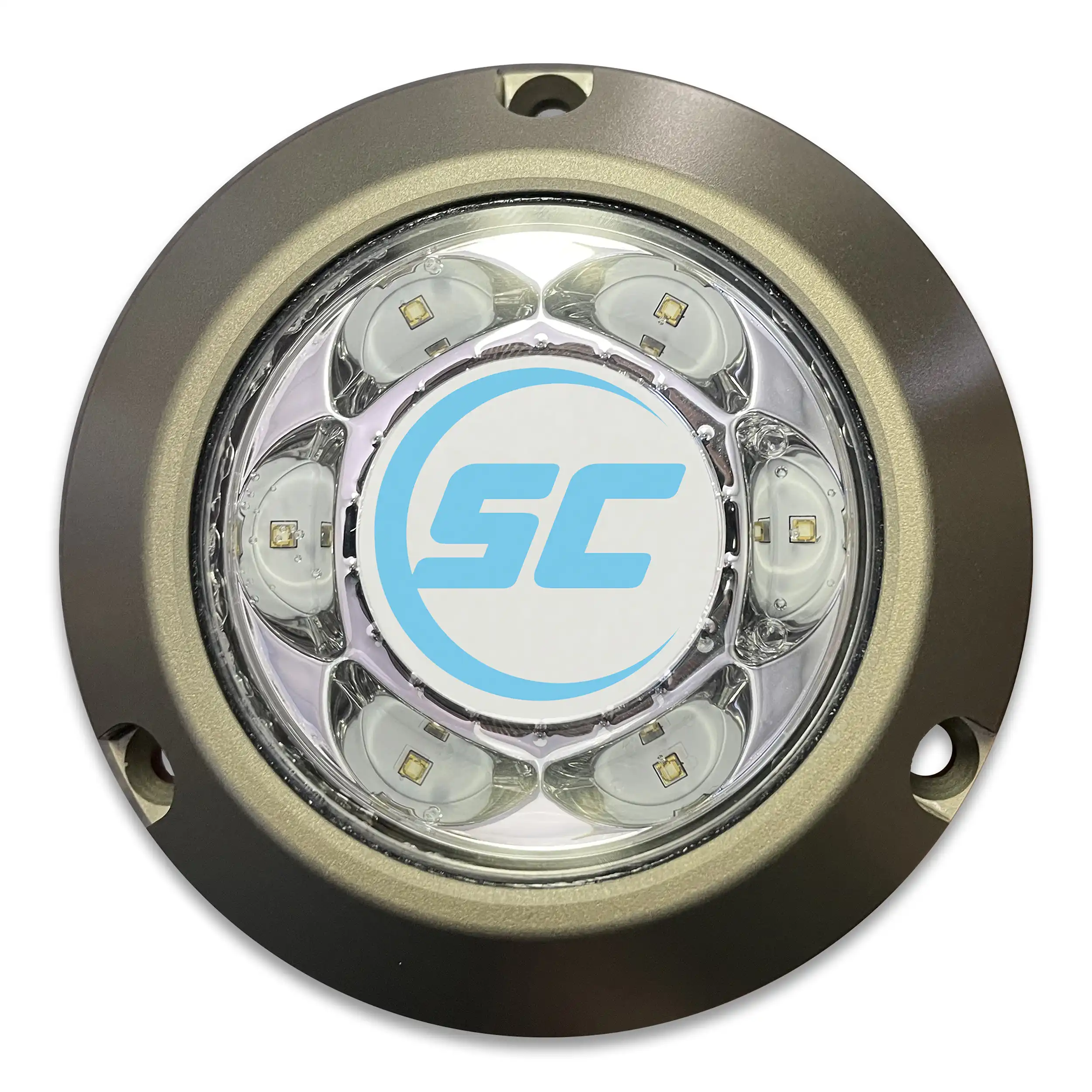

• SC3-BB-ALSM (Alu)

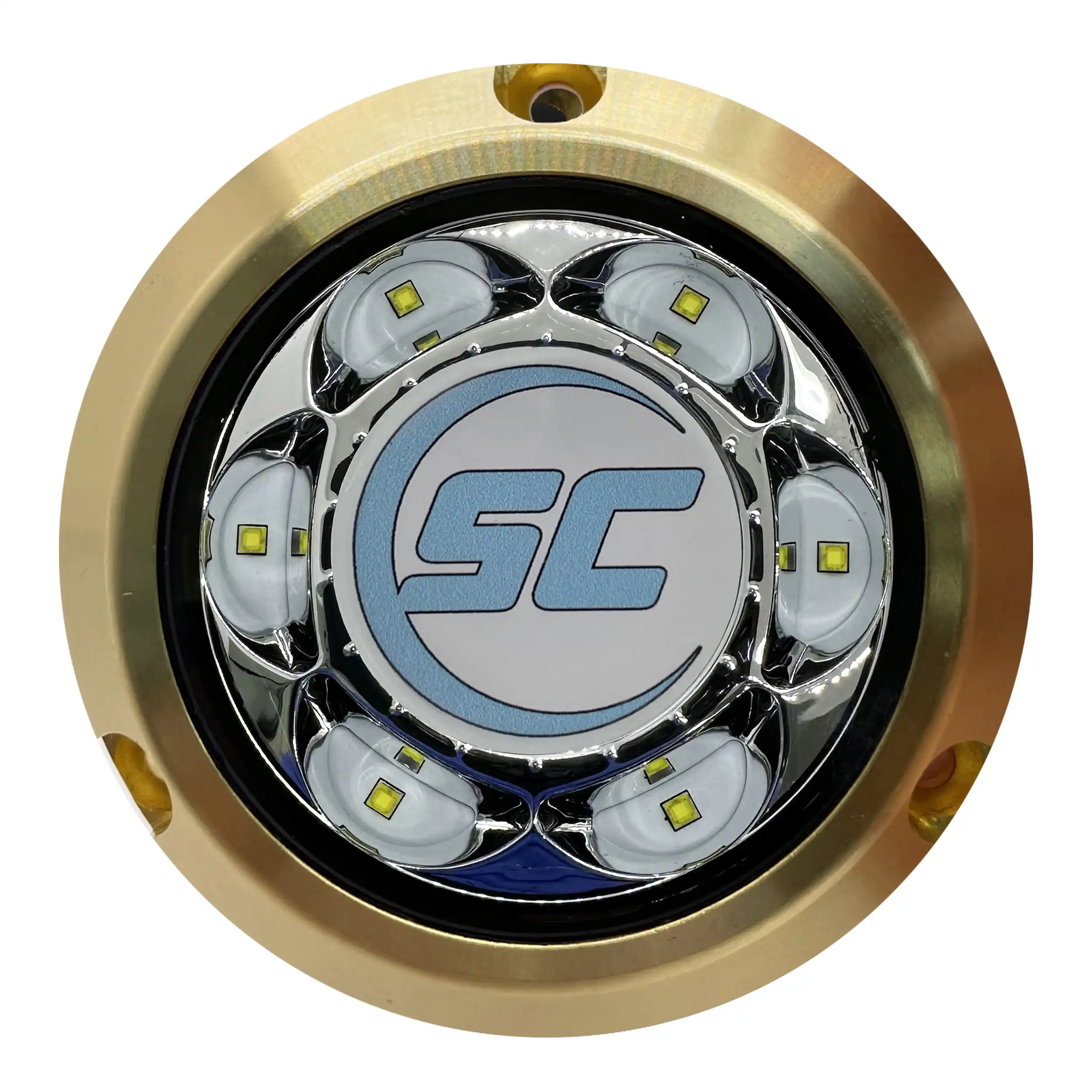

• SC3-BB-BZSM (Bronze)
