Shadow Caster SC3 Thru-Bolt Pontoon Series

Description

3″ UNDERWATER PONTOON BOAT LIGHT – SC3-ALT

The SHADOW-CASTER® SC3-ALTB 3″ underwater pontoon boat light is designed for pontoon boat bracket mounting. The SC3-Pontoon light with its small 3” diameter and single bolt installation make it the ideal light to compliment your aluminum hull pontoon boat. The glass window and aluminum design combined with the SHADOW-CASTER’™

These 3″ underwater pontoon boat lights are available in an RGB version as well as single colour white or single colour blue.

Note: the SC3-ALTB is designed for freshwater use on trailer and lift kept boats only.

KEY FEATURES

• Proprietary clear gel-filled design, injected through entire unit —eliminates condensation and/or water intrusion under stress
• Tough, scratch resistant, tempered glass lens with hard anodized aluminum housing — impervious to acetone, solvents and demanding marine environments
• Transient surge and reverse polarity protection — dramatically prolongs unit life
• RGB version compatible with most standard RGB controllers
• Integrated thermal protection for safe operation out of water

TECHNICAL INFORMATION

• Up to 3,000 lumens
• 120° beam angle
• 3 amps max current draw (RGB version)
• 1.5 amps continuous current draw (single colour version)
• 12 volt input
• 76 mm OD
• IP68 fully submersible waterproof design
• SC3-ALTB-SERIES-Data-Sheet_HR

COLOURS AVAILABLE / PART NUMBERB

RGB or unlimited colours with Shadow-NET® controller

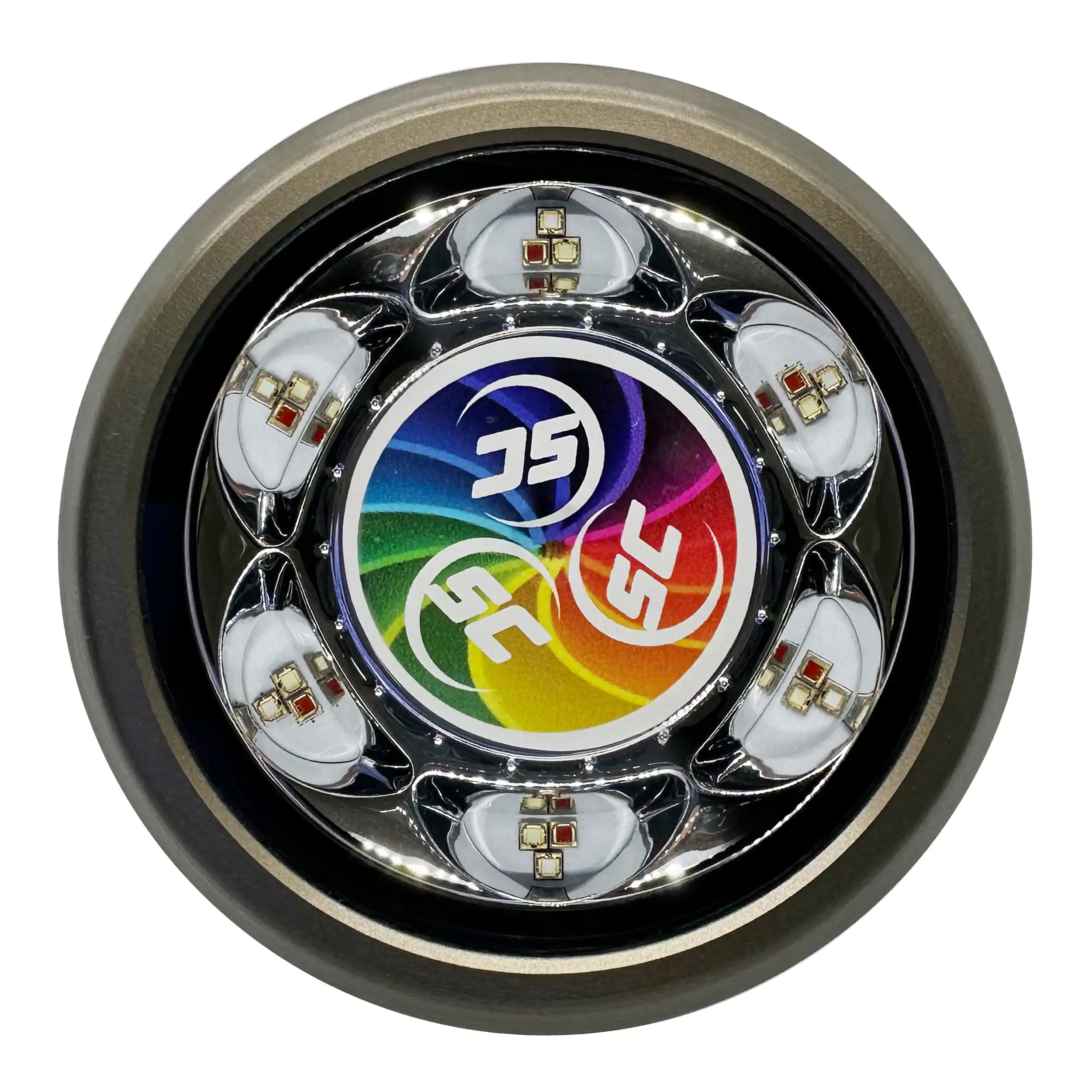

• SC3-RGB-ALTB

Bimini Blue

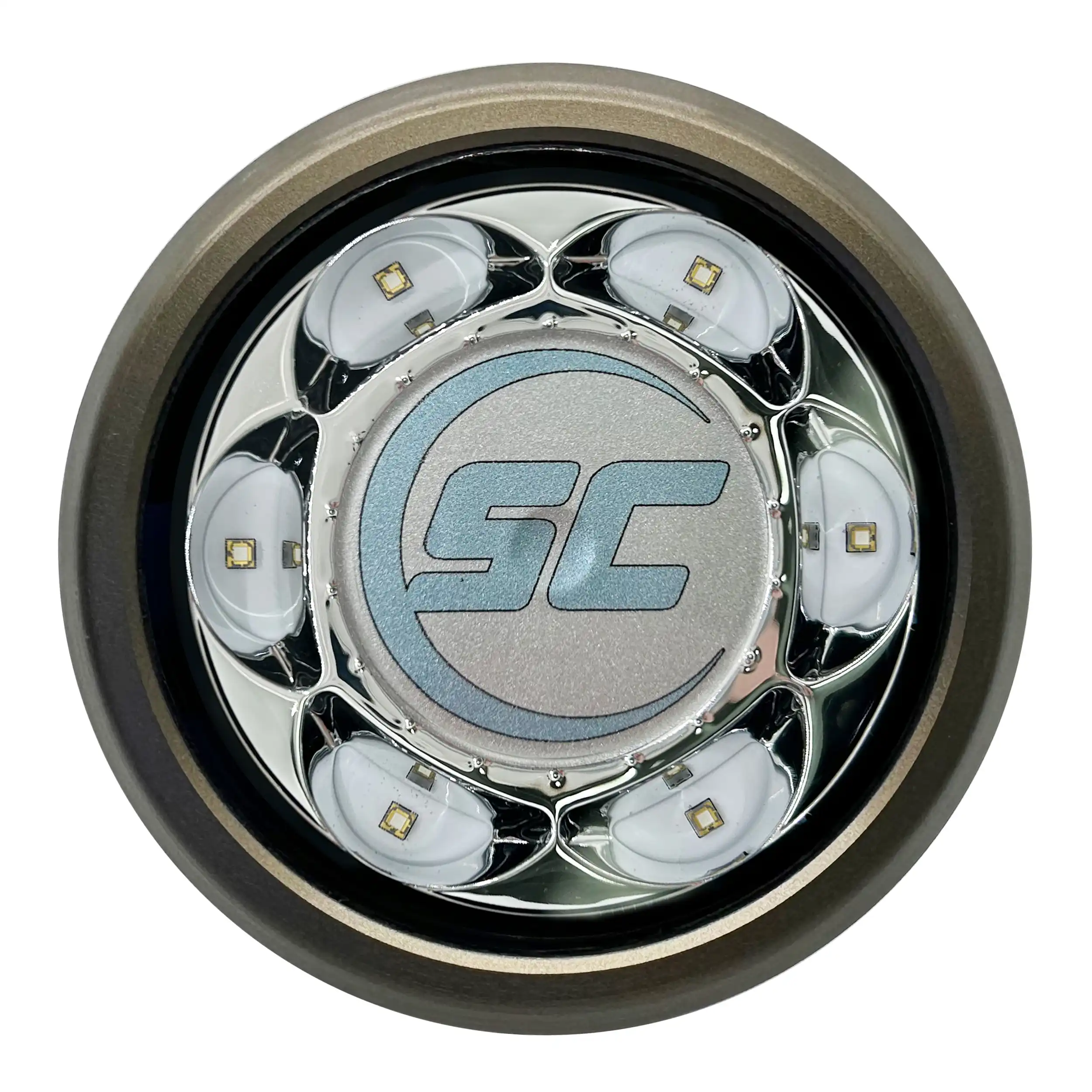

• SC3-BB-ALTB

Great White

• SC3-GW-ALTB
